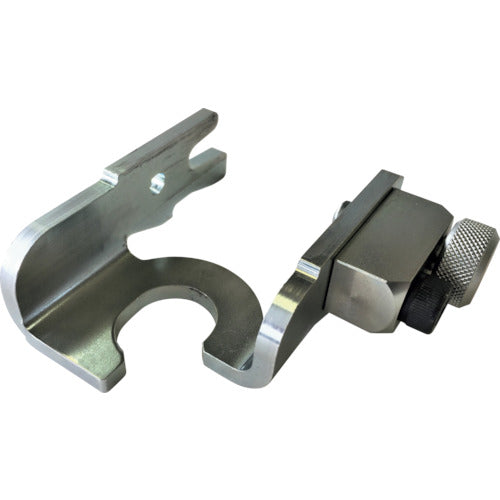

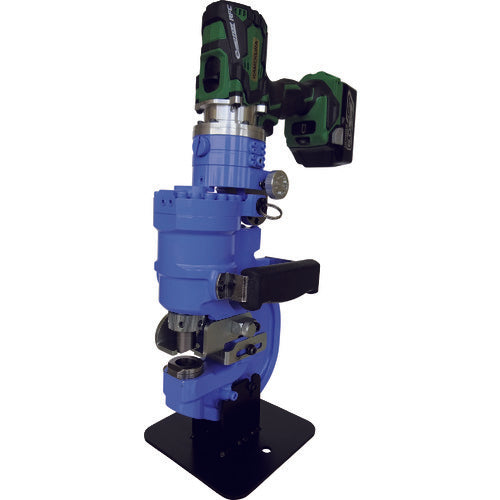

Catalog number: RF-B3A Features: ●Double-action auto-return mechanism that smoothly separates materials. ●Uses a work stripper with one-touch center for easy alignment and blade replacement. ●The motor section of the less barrier can be bent at 45° and 90°, allowing work in narrow spaces. Applications: ●For drilling holes in shaped steel such as angles, channels, and flat bars. Specifications: ● Maximum drilling capacity (mm) Stainless steel: t6 x φ20 ● Maximum drilling capacity (mm) Iron: t9 x φ20 ● Pocket size (mm): 50 ● Output load (kN): 196 ● Output load (t): 20 ● Battery voltage (V): 36 ● Battery capacity (Ah): 2.5 ● Output load kN (t): 196 (20) ● Width (mm): 128 ● Depth (mm): 286 ● Height (mm): 443 ● Motor: DC brushless motor ● Battery pack: Hitachi Model / BSL36A18 ● Charger: Hitachi Model / UC18YSL3 ● Drive method: Electric hydraulic double-acting auto return Set contents / accessories: ● Charger (UC18YDL2) ● Battery pack (BSL36A18) x 1 ● Replacement blade N-12 ● Stand ● M5 wrench ● Rod wrench ● Storage case Note: *Capacity varies depending on the size of the blade. *The drilling thickness for blades of Φ10 or less is 80% for steel plate (SS400) and 50% for stainless steel (SUS304) of the blade size.
