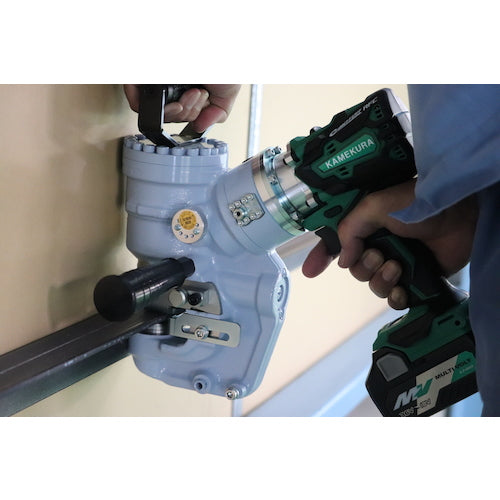

Kamekura Electric Hydraulic Cordless Port Puncher RW-B2A 1 unit

Catalog number: RW-B2A Features: ● Semi-less barrier structure with motor tilted 50° backward for working in tight spaces. ● Double-acting auto-return is an innovative mechanism that uses hydraulic pressure on both the downward and upward movement of the piston to smoothly separate the puncher and material, improving work efficiency. ● Work stripper with one-touch center ● Double-acting auto-return (automatic switching type) Applications: ● For drilling holes in shaped steel such as angles, channels, and flat bars. Specifications: ● Maximum drilling capacity (mm) Stainless steel: t6 x φ20 ● Maximum drilling capacity (mm) Iron: t9 x φ20 ● Pocket size (mm): 40 ● Output load (kN): 196 ● Output load (t): 20 ● Compatible replacement blade: R ● Body weight: 11 kg ● Frame depth: Shaft center to 40 mm ● Drilling time: Approximately 6 seconds ● Motor: DC brushless motor ● Battery: BSL36A18 ● Charger: UC18YDL2 Single-phase AC 50/60 Hz common voltage 100 V ● Output: 196 KN (20 ton) ● Drive method: Electric hydraulic double-acting auto return ● Body dimensions: 287H x 127W x 358D Material / Finish: ● Steel Set contents / Accessories: ● Replacement blade R-12 ● Stand ● M5 wrench ● Rod wrench ● Grip ● Battery pack (BSL36A18) ● Charger (UC18YDL2) ● Storage case
