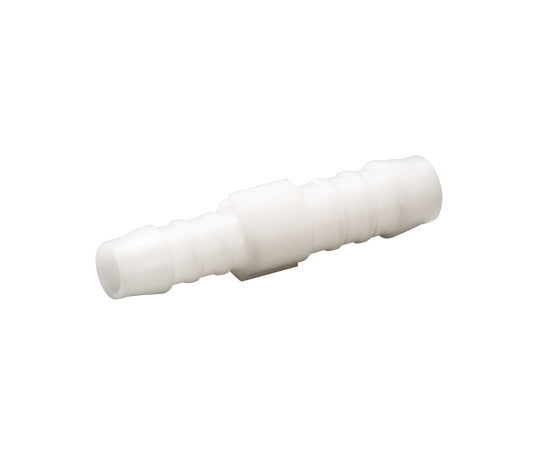

Two-way hose joint, polyacetal, GRS-1210, 1 piece

Plastic hose fittings made from polyacetal resin are lightweight hose fittings that have excellent mechanical properties, fatigue resistance, creep resistance, heat resistance, and dimensional stability. Injection molded plastic fittings are ideal for sealing low pressure gases and fluids, and for sealing partial vacuum lines. By using this hose fitting in conjunction with a hand clamp, you can achieve stable tightening. Deflection temperature under load: 110°C (1.82MPa) Applications: Ideal for drinking water, industrial water, oil and gasoline use. Material: Polyacetal (white) Maximum operating pressure: 1MPa Operating temperature range: -10℃ to +70℃ φD1: 12 φD2: 7 φD3: 10 φD4: 14 φD5: 12 φD6: 8.6 L1: 65 L2: 27.5 L3: 25.5 Code: 11600507
