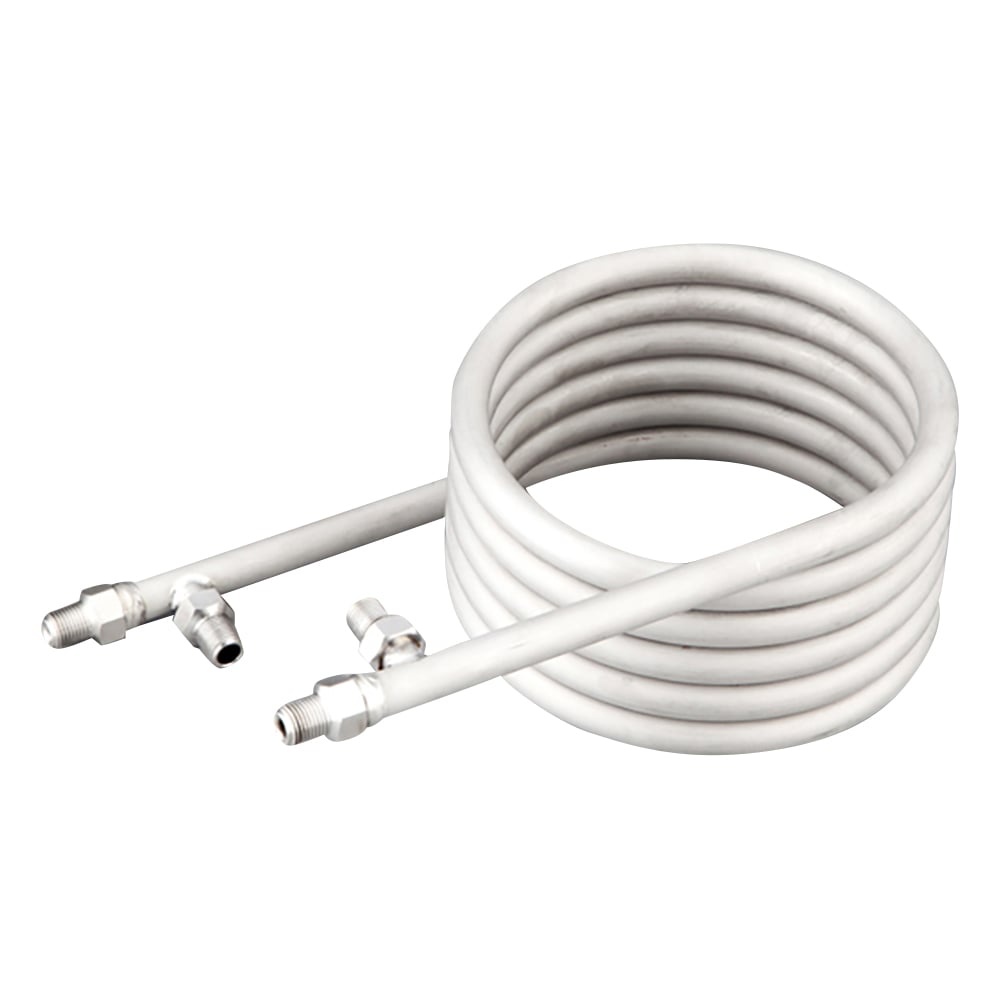

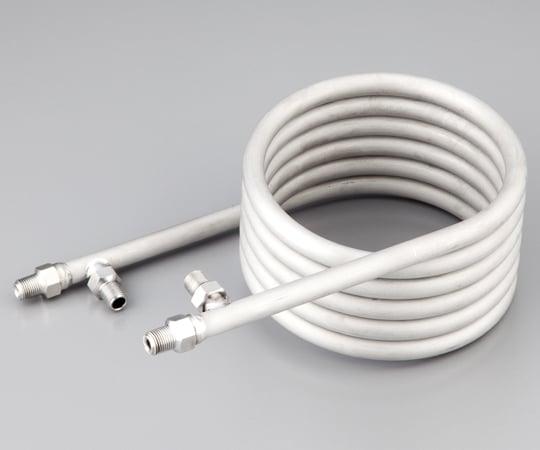

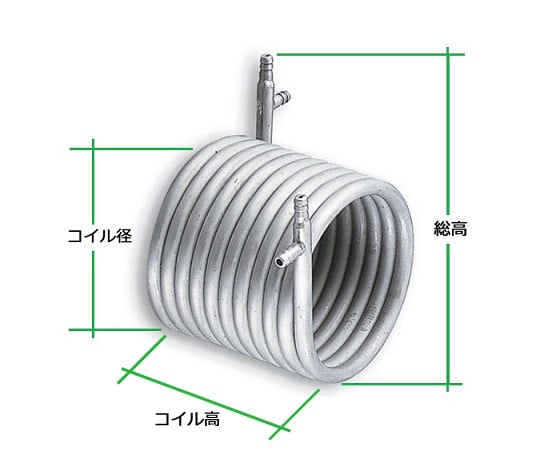

The fluids flowing through the inner and outer pipes of the double pipe are continuously cooled and heated due to the temperature difference between the inner and outer fluids, and then discharged. Size: Total height / 230mm, coil diameter / 112mm
Heat transfer area: 0.037m2
Material: Stainless steel (SUS304)

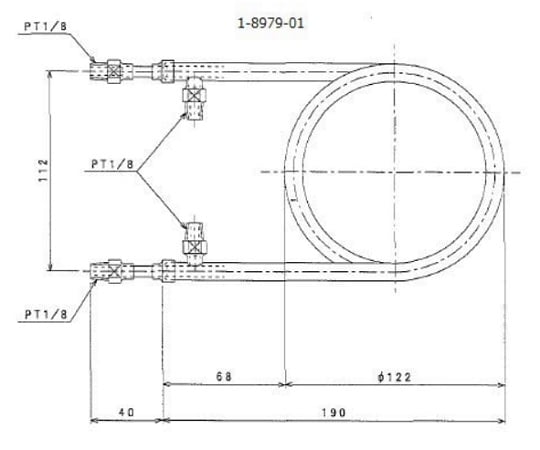

Mounting pipe diameter (inner pipe/outer pipe): PT1/8
Coil width: 71mm
Coil length: 2.0m
Volume: 5.5
