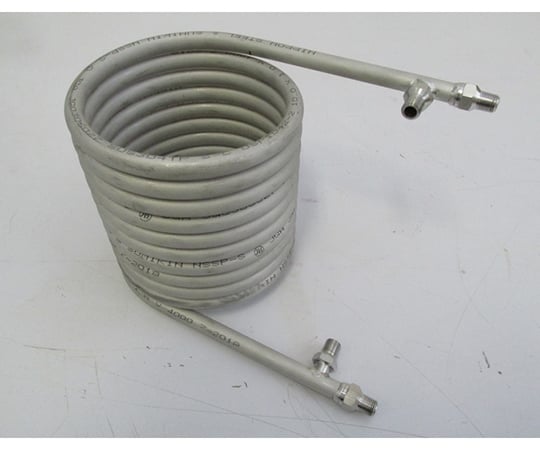

Double tube heat exchanger (stainless steel) NH-S2 1 piece

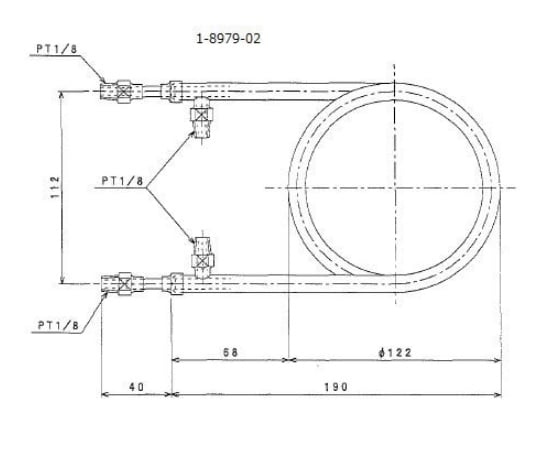

The fluids flowing through the inner and outer pipes of the double pipe are continuously cooled and heated due to the temperature difference between the inner and outer fluids, and then discharged. Size: Total height / 230mm, coil diameter / 112mm Heat transfer area: 0.07m2 Material: Stainless steel (SUS304) Mounting pipe diameter (inner pipe/outer pipe): PT1/8 Coil width: 130mm Coil length: 3.7m Volume: 11.5 RoHS2 (EU)2015/863 compliant [About RoHS]
