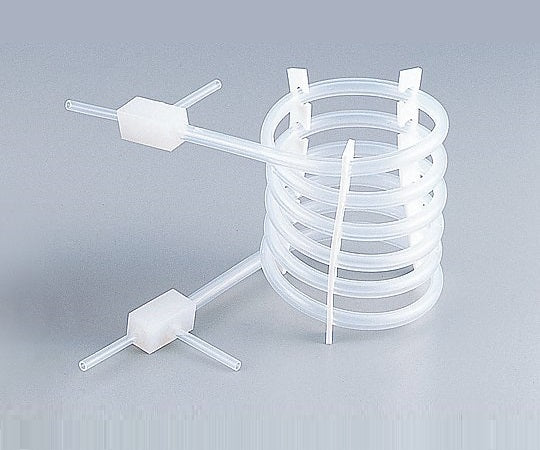

Double pipe heat exchanger (fluorinated resin) NH-T1 1 piece

The fluids flowing through the inner and outer pipes of the double pipe are continuously cooled and heated due to the temperature difference between the inner and outer fluids, and then discharged. Model number: NH-T1 Size: Total height: 230mm, coil diameter: 112mm Heat transfer area: 0.037m2 Material: Fluoride resin Installation pipe diameter: Inner pipe/φ6mm (outer diameter), φ4mm (inner diameter), Outer tube/φ10mm (outer diameter), φ8mm (inner diameter) Heat exchanger tube diameter: Inner tube/φ6mm (outer diameter), φ4mm (inner diameter), Outer tube/φ10mm (outer diameter), φ8mm (inner diameter) Coil width: 230mm Coil length: 2.0m Volume: 5.5
