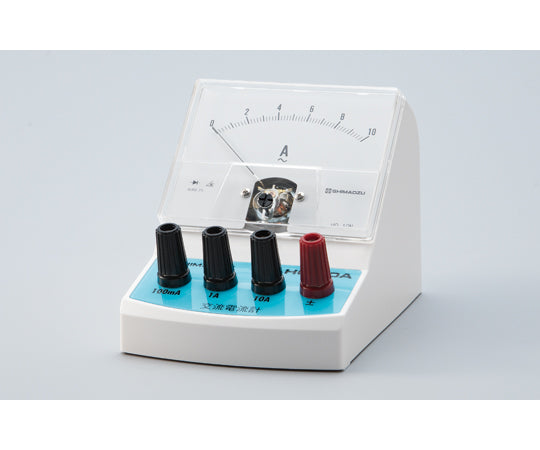

AC ammeter HQ-10A 107-112 1 unit

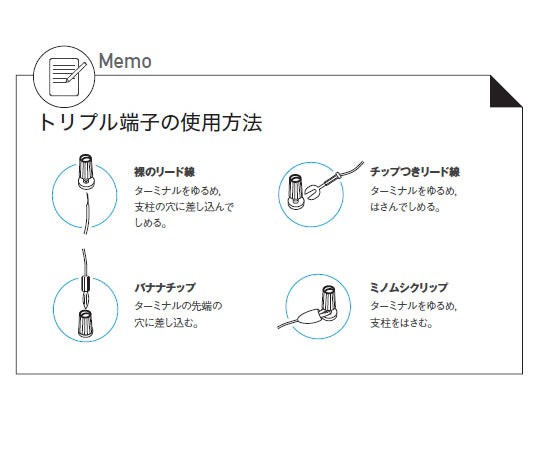

The protection circuitry is capable of withstanding input loads up to 100 times the rated value. The moving coil is equipped with a meter protection circuit. In addition, the DC ammeter is equipped with a shunt protection circuit to prevent burning due to overcurrent. The scale has a long arc length (83 mm) making it easy to read and the entire measurement range can be read. The terminal panels are color coded to help distinguish between different applications and uses. The terminals are triple terminals, allowing easy and reliable connection according to the type of lead wire. Precision: JIS Class 2.5 Scale arc length: 83mm Support method: Pivot bearing method Case: Made of ABS Bottom plate: Made of ABS (internal structure can be seen through) Terminal: Triple type Size: W100×D146×H105mm Number of ranges (number of input terminals): 3 (4) Rated value: ±(AC) 100mA/1A/10A Measurement range: 0-100mA (2mA per scale) / 0-1A (20mA per scale) / 0-10A (200mA per scale) Product code: 107-112
