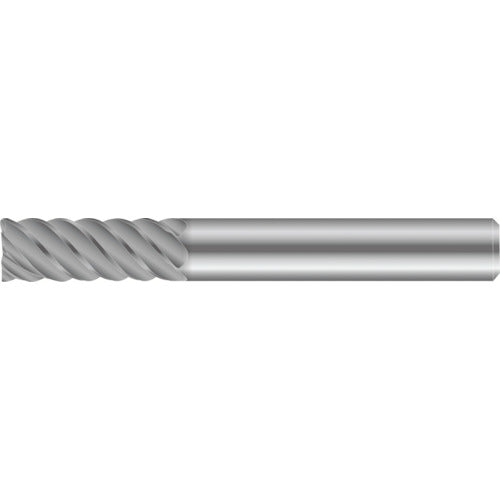

Kyocera Solid End Mill 5PGSM 5PGSM100-250-10 1 piece

Catalog number: 5PGSM100-250-10 Features: ●Core thickness ratio is 60% from the tip of the cutting edge up to 1Dc, and 80% thereafter, achieving both good chip removal and high rigidity. Applications: ●For groove and mold machining. Specifications: ●Blade diameter (mm): 10 ●Blade length (mm): 25 ●Shank diameter (mm): 10 ●Number of teeth (pieces): 5 ●Total length (mm): 100 ●Number of teeth: 5 ●Twist angle (°): 50 ●Coating composition: TiAlN ●Corner: With land ●5 teeth (medium) ●Corner specification: With land ●TiAlN ●Made in an ISO14001 certified factory Material/Finish: ●Carbide base material
