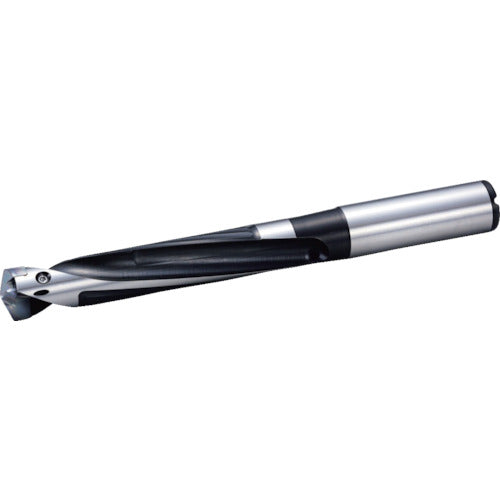

Kyocera Magic Drill Holder SS-DRA Machining Depth 3 x DC SS10-DRA080M-3 1 piece

Catalog number: SS10-DRA080M-3 Features: ●High-performance modular drill with easy tip replacement. ●Low resistance and excellent hole accuracy. ●Cuts into small pieces, allowing for excellent chip removal even in deep hole drilling. Applications: ●For drilling. Specifications: ●Blade diameter (mm): DRA type ●Total length (mm): 140 ●Shank diameter (mm): 8 ●Compatible tips: DA0794M-0840M ●Groove length (mm): 8 ●Effective machining depth: 40 ●Head mounting size: 100 ●Compatible insert diameter (mm): 8 ●Face size (mm): 30 ●Shaft length (mm): 40 ●Face (mm): 30 ●Product name: 14 ●Compatible holder: 8 ●SS: Straight shank ●Machining depth: 3×D ●For Magic Drill DRA
