Kyomachi Casting rubber wheel with swivel bracket 100mm AJ-100 1 pc

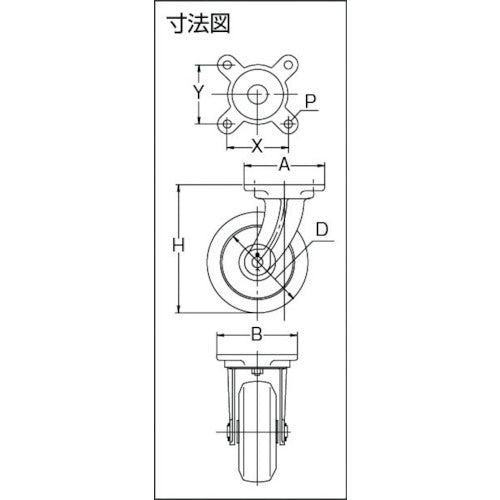

Catalogue number: AJ-100 Features: ●Cast type caster for medium loads. ●Because it is made of cast iron, it absorbs vibration and sound and has a higher allowable load than pressed wheels. ●Cast type caster suitable for transporting heavy objects. Applications: ●Used by attaching to transport carts, etc. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel ●Allowable load (daN): 98 ●Allowable load (kgf): 100 ●Wheel width (mm): 35 ●Mounting height H (mm): 151 ●Mounting seat A (mm): 120 ●Mounting seat B (mm): 120 ●Mounting pitch X (mm): 90 ●Mounting pitch Y (mm): 90 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 1000 ●Swivel type Materials/Finish: ●Metal fittings: FC casting ●Metal fittings surface treatment: Painted finish ●Wheels: Cast iron wheels, rubber
