Kyomachi Casting rubber wheel with swivel bracket 75mm AJ-75 1 pc

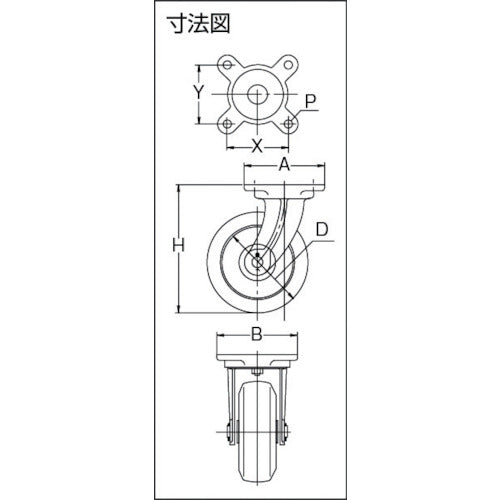

Catalogue number: AJ-75 Features: ●Cast type caster for medium loads. ●Because it is made of cast iron, it absorbs vibration and sound and has a higher allowable load than pressed wheels. ●Cast type caster suitable for transporting heavy objects. Applications: ●Used by attaching to transport carts, etc. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel ●Allowable load (daN): 68.6 ●Allowable load (kgf): 70 ●Wheel width (mm): 32 ●Mounting height H (mm): 118 ●Mounting seat A (mm): 94 ●Mounting seat B (mm): 94 ●Mounting pitch X (mm): 64 ●Mounting pitch Y (mm): 64 ●Mounting hole diameter P (mm): 10 ●Allowable load (N): 700 ●Swivel type Materials/Finish: ●Metal fittings: FC casting ●Metal fittings surface treatment: Painted finish ●Wheels: Cast iron wheels, rubber
