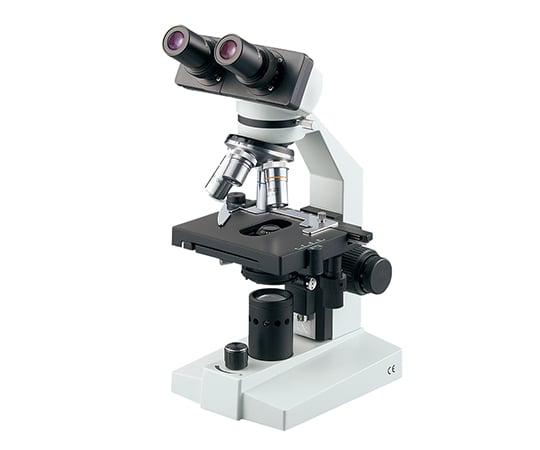

Rechargeable biological microscope binocular 40-1000× E-300HQ-LED Cordless 1 unit
Rechargeable biological microscope binocular 40-1000× E-300HQ-LED Cordless 1 unit
Regular price
¥75,130
Regular price
Sale price
¥75,130
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The power cord can be removed for use in field inspections. Binocular, diopter adjustment ±5
Eyepiece: WF10x (field of view 18), inner diameter: approx. φ23mm, outer diameter: approx. φ27mm
Objective lens: Achromat 4x, 10x, S40x, S100x (oil)
Total magnification: 40x to 1000x
Tube type: 360° rotating head, tilt angle 45°
Focus adjustment: 1-axis coarse and fine movement method
Interpupillary distance adjustment range: 55-73mm
Stage: 124 x 110 mm (forward/backward movement 25 mm, left/right movement 65 mm)
Condenser: Abbe type, with iris diaphragm and filter holder, numerical aperture 1.25
Illumination: Transparent/white LED light (light intensity adjustable), 1W30,000Lux (at maximum illumination)
Lighting power supply: 4 x nickel-metal hydride AA rechargeable batteries (included), AC100V 50/60Hz (adapter included)
Equipped with a rechargeable battery
Fuse specifications: Voltage 250V, current 1A (size: φ5mm x length 20mm)
Power cord: 3P plug, cord length approx. 165cm
Size: Approx. 130 x 175 x 340mm
Weight (main unit only): Approx. 3.3 kg
*Oil immersion oil is required when using S100.
* Rental machines are available.
Accessories: Filter (white), immersion oil (approx. 5mL), dust cover
