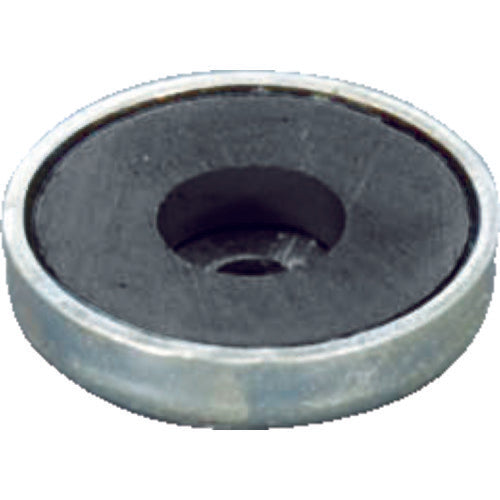

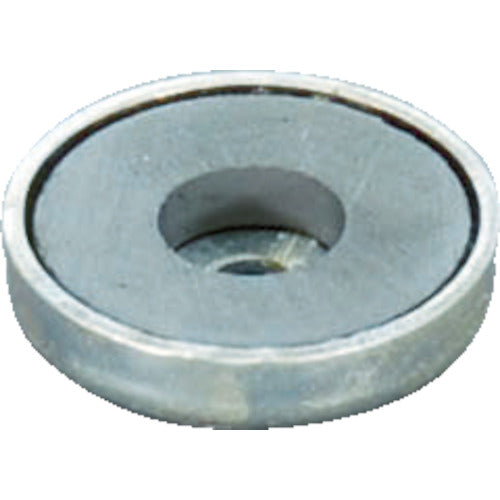

Catalog number: MGY-20 Features: ●With a cap, the adhesive force is about three times stronger than that of a single magnet. ●High holding power and no demagnetization. Applications: ●For adhesion. ●For machine parts. Specifications: ●Surface magnetic flux density (T): 0.12 ●Adhesive force (N): 11 ●Outer diameter (mm): 20 ●Thickness (mm): 4 ●Hole diameter (mm): 3.5 ●Shape: Round ●With or without holes: With ●Anisotropy ●Single-sided adhesion ●Magnet outer diameter x thickness x hole diameter: 17 x 3 x 7 mm ●Round shape ●With holes Materials/Finish: ●Magnet: Ferrite magnet ●Cap: Steel Note: ●Adhesive force is a calculated value only. It may vary depending on the usage conditions, so please use it as a reference data.
