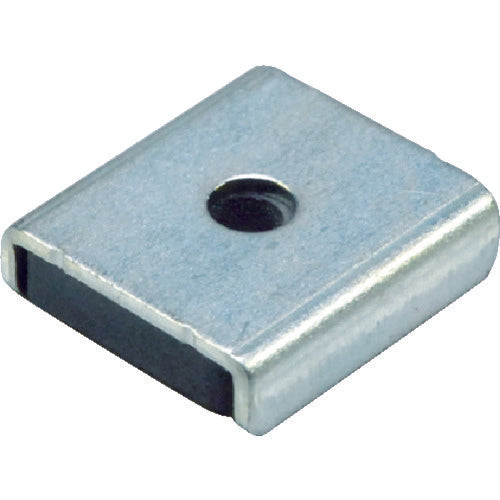

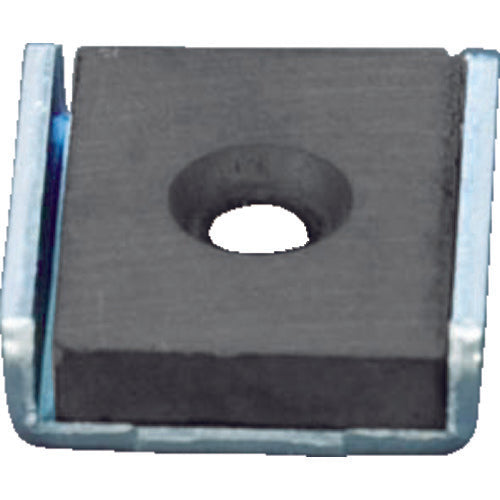

Catalog number: MGC-25 Features: ●With a cap, the adhesive force is about three times stronger than that of a single magnet. ●High holding power and no demagnetization. Applications: ●For adhesion. ●For machine parts. Specifications: ●Surface magnetic flux density (T): 0.14 ●Adhesive force (N): 35 ●Width (mm): 23 ●Length (mm): 25.5 ●Thickness (mm): 7 ●Hole diameter (mm): 5 ●Shape: Square ●Hole: Yes ●Anisotropic ●Single-sided adhesion ●Magnet length x width x thickness: 25 x 19 x 4.5 mm ●Square ●With hole Material/Finish: ●Magnet: Ferrite magnet ●Cap: Steel Note: ●Adhesive force is a calculated value only. It may vary depending on the usage conditions, so please use it as a reference data.
