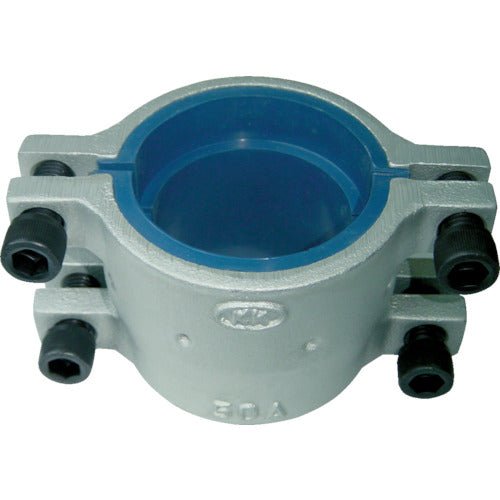

Kodama Kogyo Crimp Socket for PVC Pipes 30A VP30A 1 pc

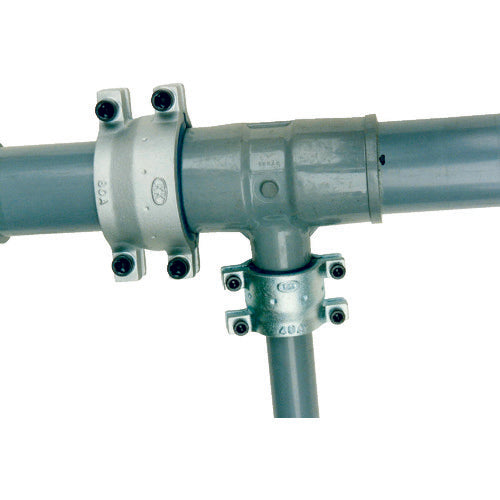

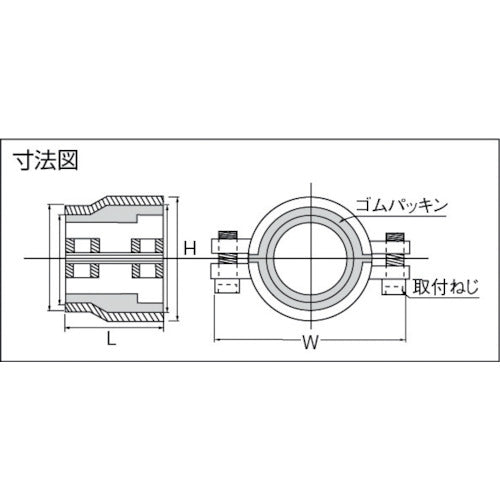

Catalog number: VP30A Features: ●Leaks can be stopped during operation without draining the contents of the pipe, so there is no need to stop the equipment or bleed air. ●50A or less is compatible with fittings without bands (brims). (65A or more can be used regardless of whether the fitting has a band (brim) or not.) ●It can also repair leaks from the connection between PVC pipe and TS fitting, and from straight pipe sections. ●Easy to install and tighten. ●Just tighten the screws, so the work can be completed in 5 to 10 minutes. ●It can stop leaks not only from straight pipe sections, but also from connections with fittings (elbows, tee, sockets, etc.). Applications: ●For emergency repairs at hotels, condominiums, hospitals, factories, etc. where operation cannot be stopped. ●For emergency repairs of water and oil leaks without stopping operation. Specifications: ●Nominal diameter A: 30 ●Nominal diameter B: 1 1/4 ●Size (mm) L x W x H: 55 x 117 x 71 ●Compatible hex wrench (mm): 8 ●Nominal diameter (mm): 40.80 ●Pressure resistance: 1MPa ●Operating temperature range: -30 to 90°C Material/Finish: ●External: Ductile cast iron (FCD450) ●Internal: Nitrile rubber
