A standard hexagonal nut with chamfer on one side. Nominal diameter: M8 x 1.25
Width across flats (mm): 13
- Height (mm): 6.5
Nut type: Type 1 nut
Strength classification: Equivalent to A2-50

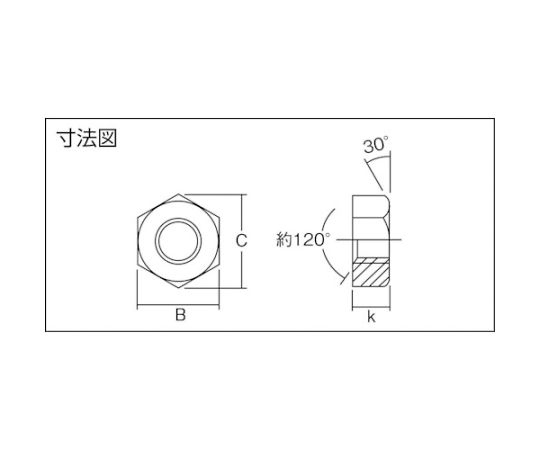

Dimensions (mm) B: 13.0
Dimensions (mm) C: 15.0
Dimensions (mm) e: 15.0
Dimensions (mm) k: 6.5
Dimensions (mm) m: 6.5
Dimensions (mm): 13.0
Package: Bolt Pack (Blister)
Nut type 1 (height: 80% of thread diameter, one side chamfered)
Material/Finish: Stainless steel (SUS304)
Country of Origin: China
Order code: 160-7154
