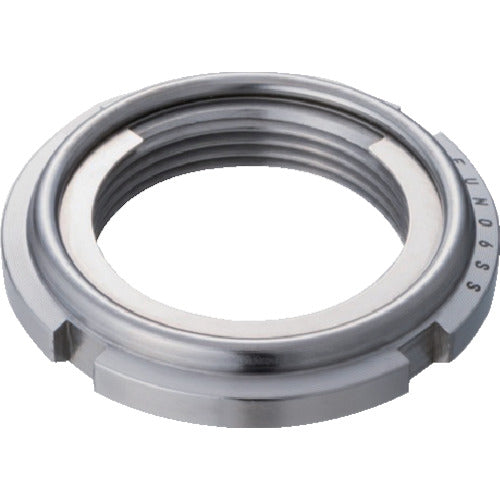

Fuji Precision FINE U-NUT M17x1 SS400 FUN03SS 1 piece

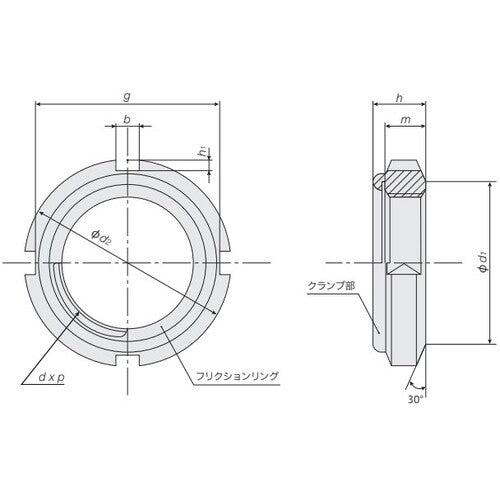

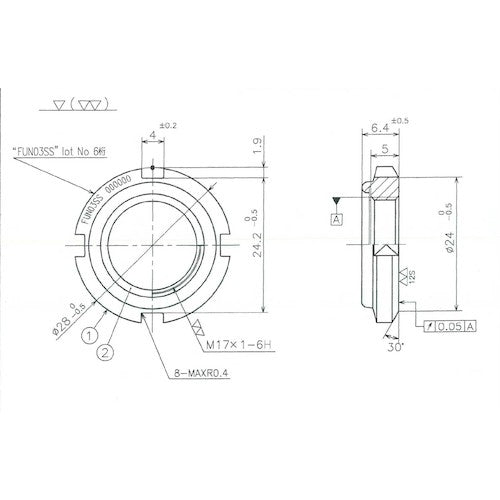

Catalogue number: FUN03SS Features: ● Pressure adjustment for fasteners is easy. ● Can be reused. ● Easy to tighten, no skilled techniques are required. ● Fine adjustments can be made at any position, and torque management is easy. ● Special tools are available up to M100. ● No need to machine keyways on the shaft. ● No need for toothed washers, and forgetting to bend can be prevented. ● Improves the rotational balance of shafts and bearings. ● Can use thinner shafts than before. ● No need for the processing, parts, and techniques previously required, achieving total cost reduction. Applications: ● For use in places where adjustments are required or where strong tightening is difficult. Specifications: ●Screw dimensions: M17 x 1 ●Outer diameter (mm): 28 ●Screw precision: JIS 6H (class 2) ●φd1 (mm): 24 ●φd2 (mm): 28 ●h (mm): 6.4 ●m (mm): 5 ●b (mm): 4 ●h1 (mm): 1.9 ●g (mm): 24.2 ●JIS 6H (class 2) Bearing anti-loosening nut Material/Finish: ●Body: SS400 ●Friction ring: SUS301 (270° ring) Caution: ●Avoid rapid tightening as a high friction torque will be generated.
