Fuji Precision FINE U-NUT M25 x 1.5 SS400 FUN05SS 1 piece

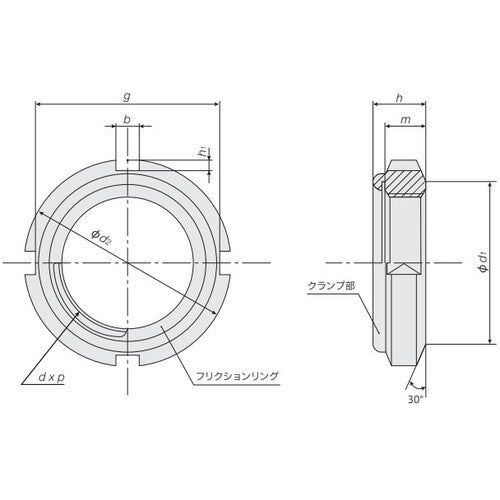

Catalogue number: FUN05SS Features: ● Pressure adjustment for fasteners is easy. ● Can be reused. ● Easy to tighten, no skilled techniques are required. ● Fine adjustments can be made at any position, and torque management is easy. ● Special tools are available up to M100. ● No need to machine keyways on the shaft. ● No need for toothed washers, and forgetting to bend can be prevented. ● Improves the rotational balance of shafts and bearings. ● Can use thinner shafts than before. ● No need for the processing, parts, and techniques previously required, achieving total cost reduction. Applications: ● For use in places where adjustments are required or where strong tightening is difficult. Specifications: ●Screw dimensions: M25 x 1.5 ●Outer diameter (mm): 38 ●Screw precision: JIS 6H (class 2) ●φd1 (mm): 32 ●φd2 (mm): 38 ●h (mm): 9.1 ●m (mm): 7 ●b (mm): 5 ●h1 (mm): 2.0 ●g (mm): 34 ●JIS 6H (class 2) Anti-loosening nut for bearings Material/Finish: ●Body: SS400 ●Friction ring: SUS301 (270° ring) Caution: ●Avoid rapid tightening as a high friction torque will be generated.
