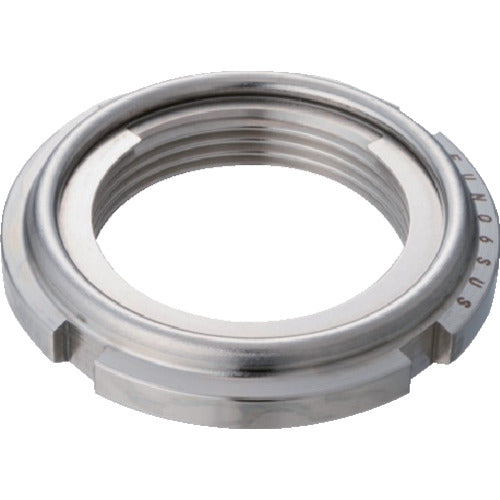

Fuji Precision FINE U-NUT M45 x 1.5 SUS304 FUN09SUS 1 piece

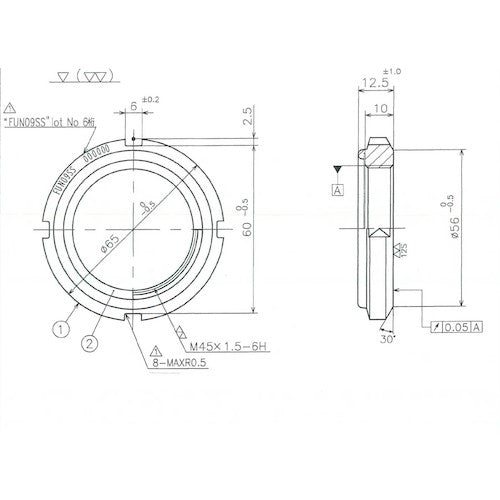

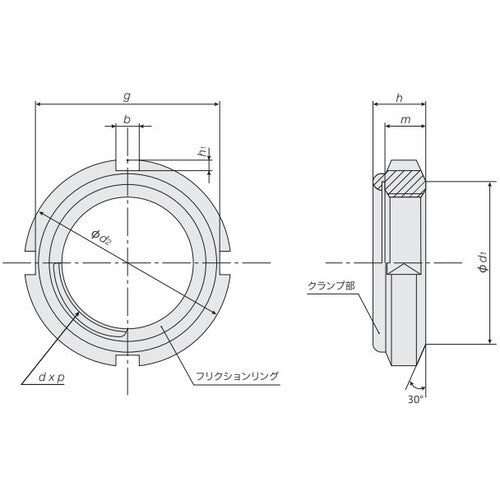

Catalogue number: FUN09SUS Features: ● Pressure adjustment for fasteners is easy. ● Can be reused. ● Easy to tighten, no skilled techniques are required. ● Fine adjustments can be made at any position, and torque management is easy. ● No need to machine keyways on the shaft. ● No need for toothed washers, and forgetting to bend can be prevented. ● Improves the rotational balance of shafts and bearings. ● Allows the use of thinner-walled shafts than before. ● No need for the processing, parts, and techniques previously required, achieving total cost reduction. ● Special tools up to M100 are available. Applications: ● For use where adjustments are required or where strong tightening is difficult. Specifications: ●Screw dimensions: M45 x 1.5 ●Outer diameter (mm): 65 ●Screw precision: JIS 6H (class 2) ●φd1 (mm): 56 ●φd2 (mm): 65 ●h (mm): 12.5 ●m (mm): 10 ●b (mm): 6 ●h1 (mm): 2.5 ●g (mm): 60 ●JIS 6H (class 2) Anti-loosening nut for bearings Material/Finish: ●Body: SUS304 ●Friction ring: SUS301 (270° ring) Caution: ●Avoid rapid tightening as a high friction torque will be generated.
