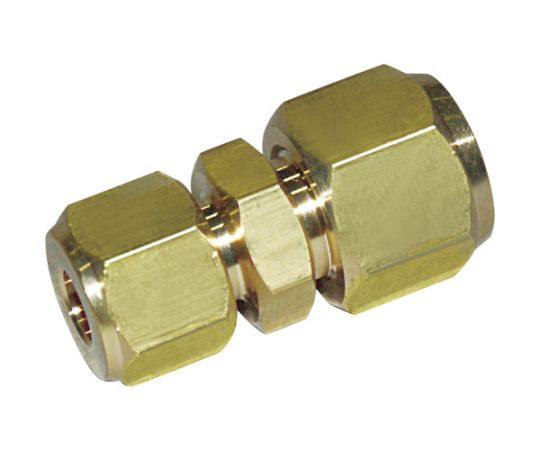

Refrigerant flare joint with reducing union N 07201185 KU-34 N 1 piece

Refrigerant piping connection size: 3/8 flare 1/2 flare Hexagonal width (mm): 22 Maximum operating pressure: 7.0MPa Normal operating pressure: 4.3MPa Operating temperature range: -20 to 150°C (no freezing) [Examples of applicable refrigerants (when used on the high pressure side) Type 1] Maximum operating pressure: 3.45MPa, applicable refrigerants: R22, R134a, R404A, R407C, R507A [Example of target refrigerant (when used on the high pressure side) Type 2] Maximum operating pressure: 4.30MPa, target refrigerant: R410A Material/Finish: Nut: C3604, Body: C3604 Country of Origin: Japan Code number: 758-7201
