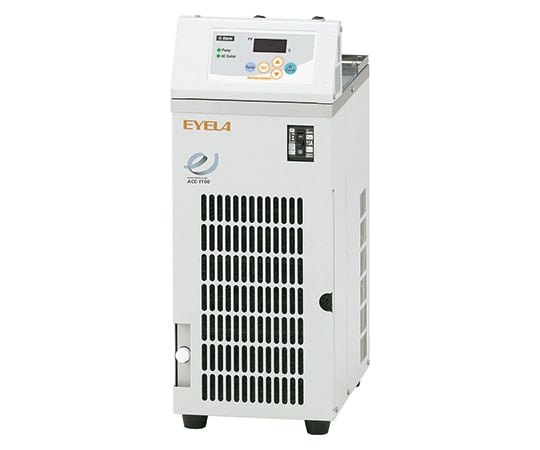

Chilled water circulation device ACE-1100 1 unit

Cooling water circulation system for reflux Cooling is done by air cooling using a radiator. For reaction vessels of 1L or less, the circulating fluid is cooled with water at a temperature within room temperature + 5℃. Suitable for refluxing solvents with boiling points of 70℃ or higher at normal pressure. Because it is an air-cooled circulation system, the circulating water temperature does not drop below room temperature. In a laboratory that is always air-conditioned, there is no condensation in the tubes or any difference in circulation efficiency. The installation area is only 185 x 260 mm, about the size of one B5 sheet of paper. The space-saving design means that it can be installed anywhere, making effective use of draft chambers and laboratory tables. Cooling method: Air-cooled by radiator Temperature setting range: Circulating water temperature: Room temperature to room temperature + 5℃ (radiator outlet) Cooling capacity (at liquid temperature): Radiator heat exchange capacity 100W External circulation capacity (50/60Hz): Maximum flow rate 5.0/5.8L/min, maximum head 3.9/5.4m Safety features: Leakage and overcurrent breaker, temperature controller self-diagnosis function, forced shutdown of heating source, fuse for service outlet, circulation pump impedance protection, float type water level drop detection Usable reaction vessel capacity: Max. 1L Circulating Dimroth tube length: Max. 200mm External circulation nozzle: One-touch connector, inner diameter 10 mm, one-touch hose nozzle, outer diameter 10 mm Service outlet: For heating source Max. 10A Ambient temperature range: 5 to 35°C External dimensions: 185 x 260 x 460 mm Weight: Approx. 13kg Power input/power voltage 1A, 100VA/AC100V 50/60Hz *Performance values ​​are measured at room temperature of 20°C, rated power supply voltage, 50Hz, and no load. *Cooling capacity and external circulation capacity are ±10% of the indicated capacity. The cooling capacity is the value when circulating through a Dimroth cooling tube (pipe length 200 mm). *Power input does not include the capacity of the service outlet. *Pure water cannot be used. Code number: 253120
