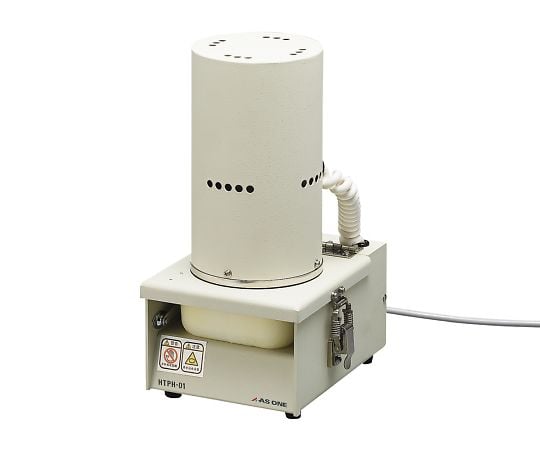

This is a crusher that takes advantage of the embrittlement of plastics caused by freezing.

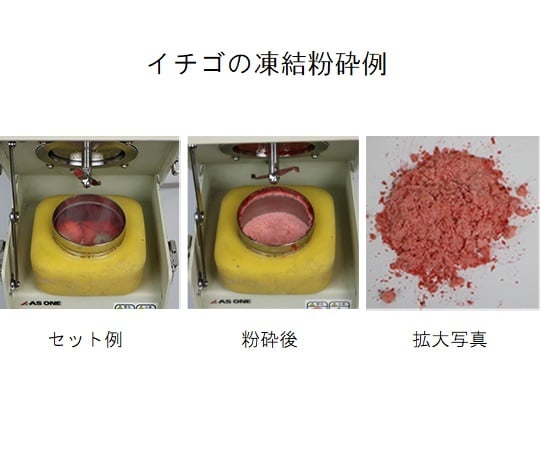

Grind with liquid nitrogen in a freezer cup.

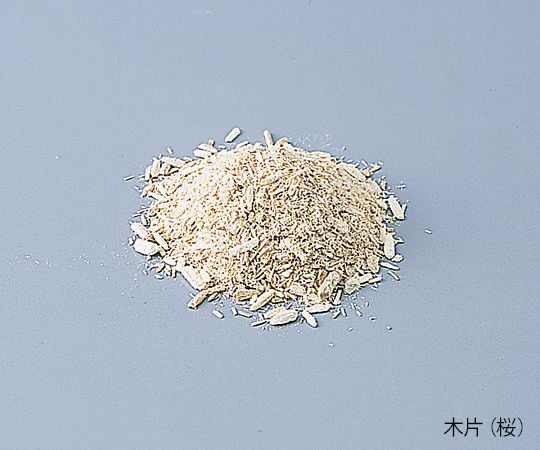

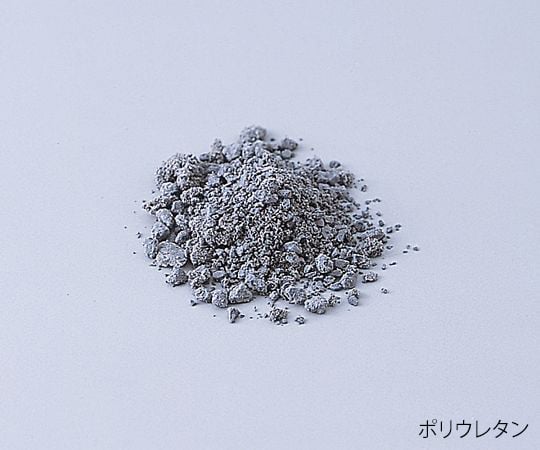

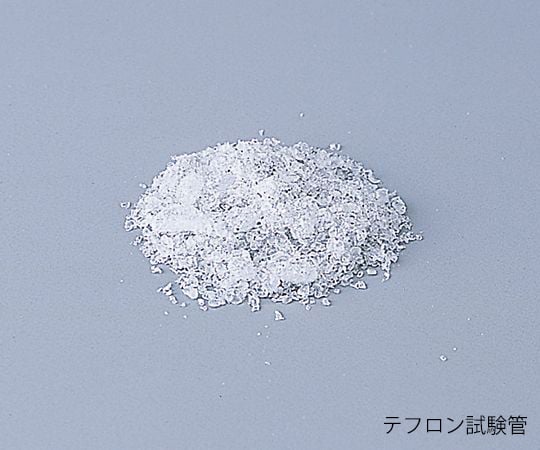

It can crush biosamples, plastics and wood chips into fine powder.
The material is crushed in a frozen state using liquid nitrogen, which prevents deterioration (oxidation) of the crushed material and increases crushing capacity.

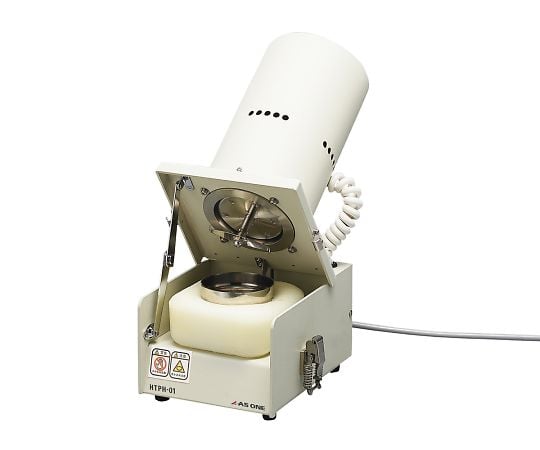

It has a reliable double safety drive structure (with lid and safety switch). Size (mm): 194 x 214 x 305
Weight (kg): Approx. 8.5
Revolution speed: 15,000 rpm
Motor: 140W
Power supply: AC100V 50/60Hz (3P plug)
Cup capacity: Approx. 100mL
Processing capacity: 5-10g/time
Amount of liquid nitrogen used: 50mL/time
Rotation direction: Clockwise when viewed from above
Freezing cup (SUS304): φ75×H50mm (inner diameter) φ85×H60mm (outer rubber dimensions)
Rotary blade Z type: 70 x 10 mm
accessories
Standard replacement blade (TPH-01H) x 1
Cup (TPH-01C) x 1
Replacement carbon brush (2 pieces) x 1
Brush
Single-ended wrench x 2 types
