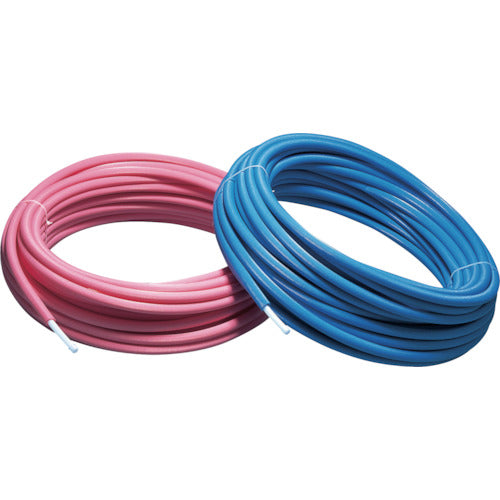

Maezawa Supply Industry Cross-linked polyethylene pipe with thermal insulation, thermal insulation material 5mm, pink, 10A x 50m, MXPECP-1005-50Q, 1 unit

Catalog number: MXPECP-1005-50Q Features: ● Pipes that can be used for domestic water supply and hot water piping. Specifications: ● Maximum operating pressure (MPa): 0.65 (at 95°C) 1.5 (at 0°C) ● Operating temperature range (°C): 0 to 95 (less than 70°C for circulation piping) ● Nominal diameter (mm): 10 ● Length (m): 50 ● Pipe inner diameter (mm): 9.8 ● Pipe outer diameter (mm): 13.0 ● Approximate outer diameter of insulation material (mm): 24 ● Color: Pink ● Pipe standard: Cross-linked polyethylene pipe (JIS K 6769 PN15 XM type). ● Insulation material thickness: 5mm. ● Insulation material color: Pink. Material/Finish: ● Pipe: Cross-linked polyethylene. ● Insulation material: Expanded polyethylene.
