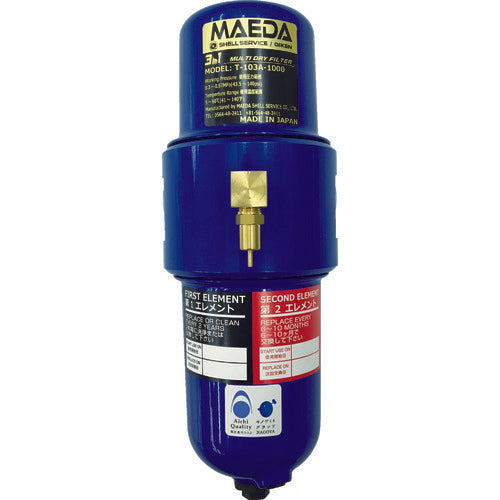

Maeda Shell Air Filter 3-in-1 Multi Dry Filter Rc 1/4 inch T-103A-1000 1 unit

Catalog number: T-103A-1000 Features: ● Unique structure that has the filter function of three units in one unit. ● A dry filter that removes water droplets, oil mist, and solid particles of 0.01 μm or more to produce ultra-clean air. ● The element can be easily replaced without tools. ● Comes with two pressure gauges, allowing you to visually manage when the element needs replacing. ● Has been adopted in the painting lines of automobile manufacturers. Applications: ● For cases where ultra-clean air without impurities, oil mist, or water droplets is required. ●Machine tools●Measuring instruments●Improvement of painting defects●Solenoid valves●Air cylinders●Air guns●Static charge eliminators●Semiconductor and liquid crystal manufacturing related●Laser processing machines and leak testers Specifications:●Filtration accuracy (μm): 0.01●Operating pressure (MPa): 0.3-0.97●Processed air flow rate (［［M3］］/min): 0.3●Connection diameter: Rc1/4●Width (mm): 85●Depth (mm): 101●Height (mm): 262●Operating fluid: Compressed air, nitrogen, argon gas●Fluid temperature (℃): 5-60●Compatible models: With pressure gauge (not included with T-103A-1000)●Without pressure gauge●ISO8573-1 (JIS B8392-1) particle class 1, oil class 1 certified●Standard filter for machine tool manufacturers●Ultra-high performance, all-in-one, energy-saving design with minimal pressure loss Material/Finish:●Housing: Aluminum die-cast Set contents/Accessories: ●Bracket ●Mounting screws for bracket ●Push pin Caution: ●Do not subject the filter body to shocks or drop it. ●Use within the indicated processing air volume, operating pressure, and operating temperature ranges. ●The auto drain has a one-year warranty. ●Do not remove the labels or maintenance symbols from the body. ●Be sure to read the instruction manual before use.
