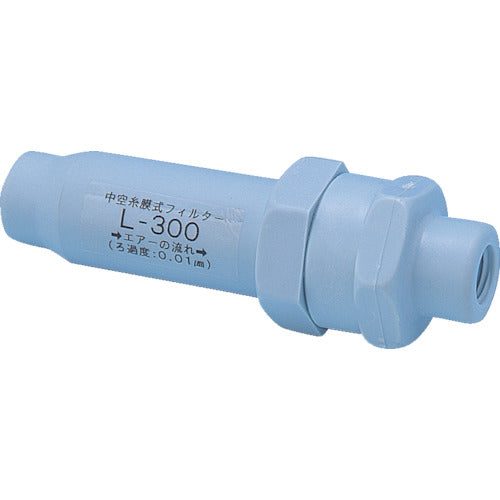

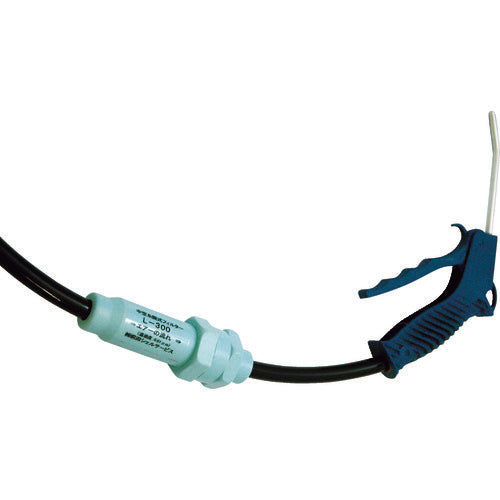

Maeda Shell Excel Inline Filter Clean Room Specification L-300 1 S

Catalog number: L-300 Features: ● Hollow fiber membrane can remove particles of 0.01 μm or more. ● Compact and ensures high flow rate. ● Has sterilization performance. ● Made of special engineering plastic, rust-free. ● HACCP compliant. Applications: ● Medical and food machinery, precision measuring instruments, analytical equipment, semiconductor manufacturing, printing. Specifications: ● Filtration accuracy (μm): 0.01 ● Operating pressure (MPa): 0.97 ● Processing air flow rate (［［M3］］/min): 0.3 ● Connection port size: Rc1/4 ● Fluid used: air, nitrogen ● Fluid temperature (℃): 5-50 ● Depth (mm): 36.5 ● Height (mm): 115 ● Width (mm): 36.5 ● Bacteria capture performance LRV≧8 (certified by a third-party organization) ● Clean room type ● Fluid temperature: 5-50℃
