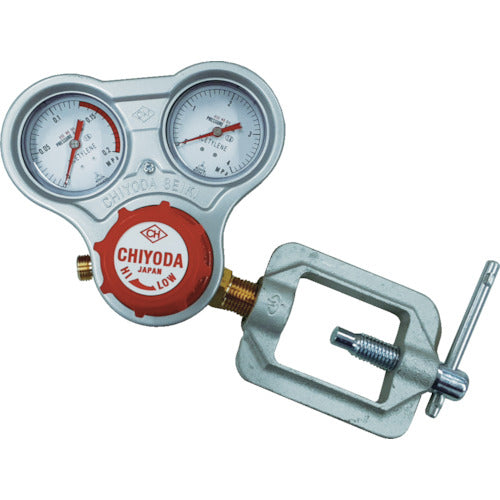

Chiyoda Acetylene Regulator Stout Free Slide Frame Type SRA 1 pc

Catalog number: SRA Features: ●Compact body with few protrusions. ●Free slide frame type, with gauge protector. ●Complies with new JIS standards. Applications: ●Acetylene gas regulator. Specifications: ●Type: Free slide frame type ●Fluid: Acetylene ●Primary side operating pressure (MPa): 2.5 or less ●Secondary side operating pressure (MPa): 0.01 to 0.09 ●Inlet connection: Pilot type ●Outlet connection: M16 x P1.5 (left) male thread ●Primary side operating pressure: 2.5 MPa or less ●Secondary side operating pressure: 0.01 to 0.13 MPa ●Flow rate 2 [m3] / N (secondary: at 0.05 MPa) ●Flow rate ([m3] / h): 2 (secondary: at 0.05 MPa) ●Adjustment pressure (MPa): 0.01 to 0.13 Caution: ●Do not use with anything other than acetylene gas.
