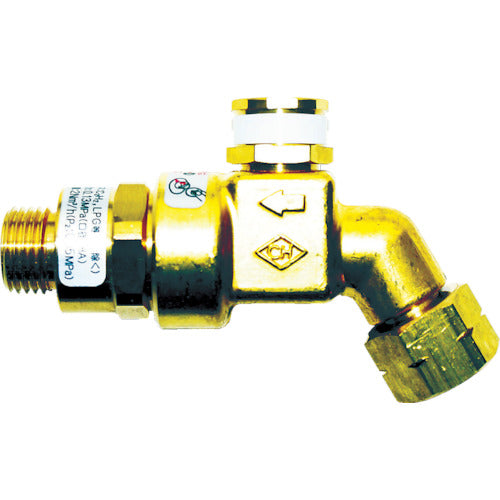

Chiyoda Save Point S Type (for acetylene and propane) SA-2 1 unit

Catalog number: SA-2 Features: ●High safety that reliably blocks backflow and flashback. ●This dry safety device has passed all flashback tests, pressure tests, backflow tests, impact tests, blocking tests, and airtight tests. ●Product liability insurance included. Uses: ●To prevent flashback. Specifications: ●Compatible gas: AC, LPG ●Operating pressure (MPa): 0.13 ●Inlet connection shape: M16 x P1.5 (left) female ●Maximum flow rate (L/h): 2000 ●Connection diameter: 8A ●Flow rate (［［M3］］/h): 2 (when inlet pressure is 0.05MPa) Material/Finish: ●Brass Caution: ●Malfunctions may occur outside the operating temperature range (-10 to 55°). ●Laser welding cannot be used. ●Never disassemble the Save Point S type. If it is disassembled, the blocking ability cannot be guaranteed. ●Regular voluntary inspection: If you use it after 3 years from purchase, please have it reinspected.
