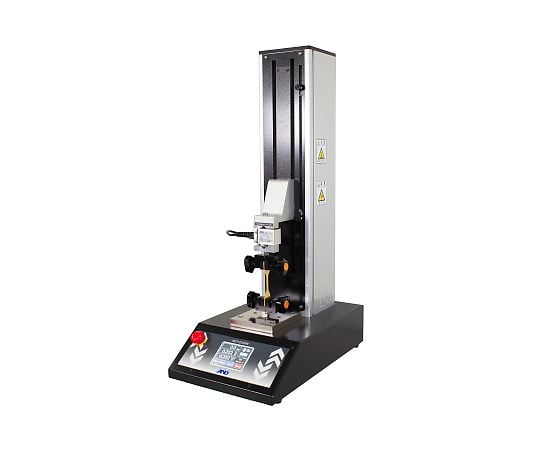

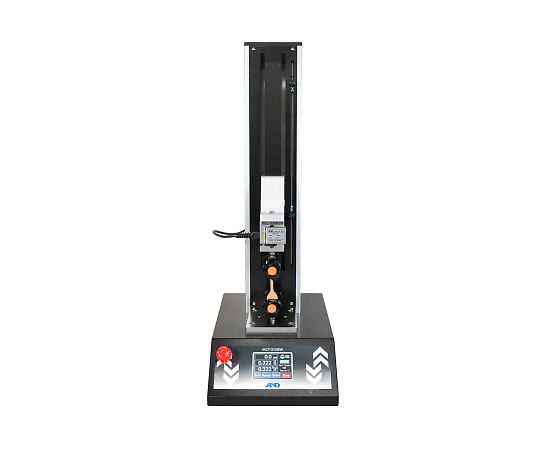

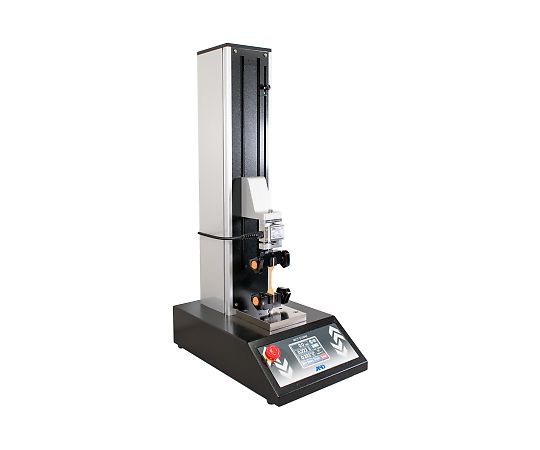

Tabletop tension and compression testing machine (force tester) MCT-2150W 1 unit

You can see the "strength"! This is a high-performance, low test force type (test force display resolution: 0.001N) tabletop tensile/compression tester. The color touch panel provides good visibility and easy operation. It comes with a high-precision load cell and is ready to use as soon as you turn it on. Test speed can be easily set digitally. Displacement display is standard equipment. PC import software is included as standard. You can also use attachments that have been used with force gauges and push-pull gauges. *When using M6 male screw adapters with M6 screw specifications. By connecting to the mini printer AD-8126 (sold separately), the maximum load and displacement can be printed out. Space-saving design that can be used on a desk. This is a force measuring device that replaces force gauges and push-pull gauges. It can be used for various material tests. Maximum test force capacity: 500N Crosshead stroke: 370mm Effective stroke (when using standard parallel clamping jaws): 285mm Crosshead speed range: 10 to 300 mm/min: within ±5% of set value (unloaded) Crosshead speed and test force capacity: Tests can be performed up to the maximum test force capacity at all speeds Displacement display: 00.00mm (minimum 0.01mm: 100mm or more is displayed as 0.1mm) Test force measurement accuracy (when using a 500N load cell): 500N to 50N / ±0.2% FS, 50N to 5N / ±2% of indicated value, 5N or less / within ±0.1N Test force measurement accuracy (when using a 50N load cell): 50N to 5N / ±0.2% FS, 5N to 0.5N / ±2% of indicated value, 0.5N or less / within ±0.01N Test force display resolution (when using a 500N load cell): 0.01N (displays 0.1N when over 100N) Test force display resolution (when using a 50N load cell): 0.001N (displays 0.01N when over 10N) External dimensions/weight: 250 (W) x 405 (D) x 711 (H) mm/18 kg Accessories: Instruction manual, 500N load cell, 50N load cell, PC software (CD-ROM: MSAT-Lite), USB cable Not waterproof. *This product is not waterproof.
