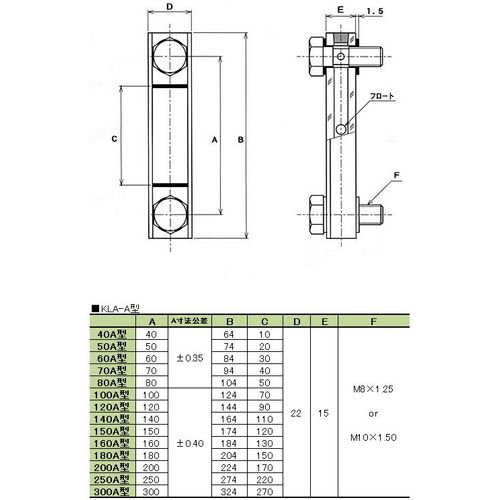

Catalogue number: KLA-80A-A-M10 Features: ● An oil gauge made of improved heat-resistant acrylic resin. ● The body has excellent transparency, and the oil level can be read reliably thanks to the white printing on the back and the built-in float. ● The oil level can also be read from the side. Specifications: ● Thickness (mm): 15 ● Heat-resistant temperature (℃): 90 ● Screw dimensions: M10 x 1.5 ● Mounting pitch (mm): 80 ● Total length (mm): 104 ● Mounting pitch (mm): 80 ● Width (mm): 22 ● Screw dimensions: M10 x 1.50 ● Screw-fastened Material/Finish: ● Acrylic
