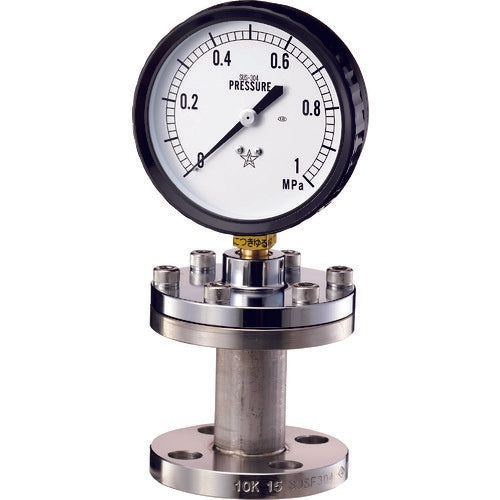

Bottom right: Diaphragm pressure gauge BF type KA-BF-20A-316-1MPA 1 piece

Catalog number: KA-BF-20A-316-1MPA Features: ●A diaphragm is placed between the fluid to be measured and the pressure gauge, and the space between them is filled with a special non-compressible liquid to act as the pressure medium. Applications: ●For measuring strong acids, alkalis, and fluids with high viscosity that tend to solidify. Specifications: ●Pressure range (MPa): 0-1 ●Minimum scale (MPa): 0.02 ●Designation: A (10k 20A) 100 x 1MPa ●Accuracy: ±1.6%FS ●Connection size: 10k 20A ●Size (mm): 100 Material/Finish: ●Wetted part: S-316
