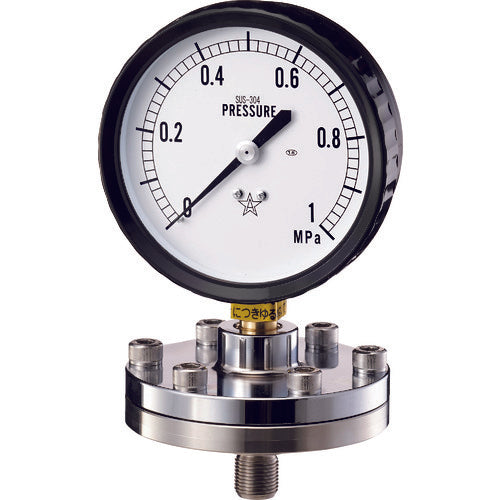

Bottom right: Diaphragm pressure gauge BT-1 type KA-BT-1-8-PVC-1MPA 1 piece

Catalogue number: KA-BT-1-8-PVC-1MPA Features: ●A diaphragm is placed between the fluid to be measured and the pressure gauge, and the space between them is filled with a special non-compressible liquid to act as the pressure medium. Applications: ●For measuring strong acids, alkalis and highly viscous fluids that tend to solidify. Specifications: ●Pressure range (MPa): 0-1 ●Minimum scale (MPa): 0.02 ●Name: AS*R3/8×100×1MPa ●Accuracy: ±1.6%FS ●Connection size: R3/8 ●Size (mm): 100 Material/Finish: ●Wetted parts: PVC, Teflon membrane
