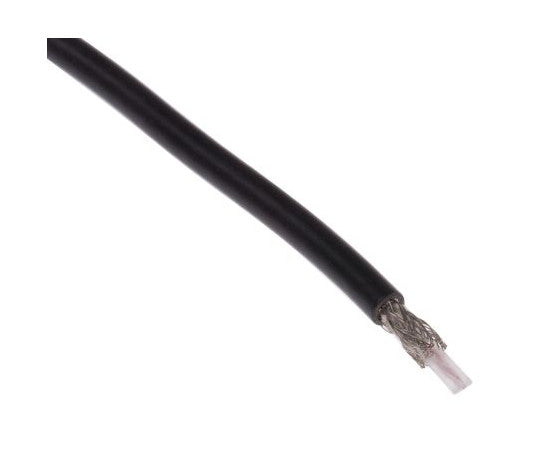

Coaxial cable RG174A/U 20m 50Ω B 222-8610 1 roll (20m included)

BNC Plug/Cable Group B Cable with flexible inner conductor made from 7 x 0.16mm bare copper clad steel and solid polyethylene insulation. Coaxial Type: RG174A/U Outer diameter: 2.79mm Characteristic impedance: 50Ω Reel length: 20m Sheath color: Black Sheath material: Polyvinyl chloride (PVC) Insulation material: PE Conductor material: Copper-coated steel Conductor strand type: Standard Core strand: 7/0.16mm Number of strands: 7 Strand diameter: 0.16mm Connector type: B Maximum operating temperature: +85℃ MIL-C-17 (388-502) RG174A/U High Frequency, Coaxial Cable Quantity: 20m RoHS Compliant
