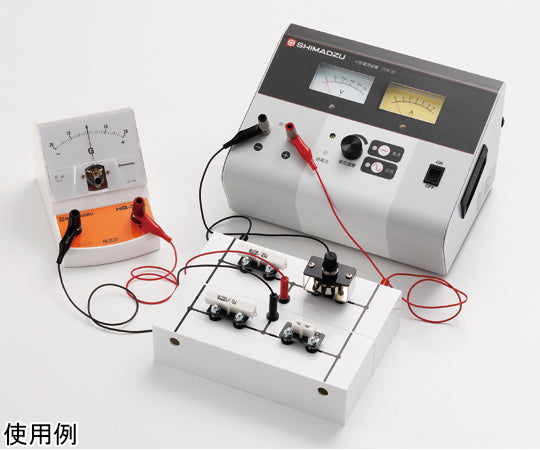

Circuit experiment equipment standard set EC-S 134-880 1 set

You can create things by combining blocks and parts. Comes with a special case for storing the elements. This is an experimental device that is primarily used for electrical circuit experiments in high school physics. Experiment items: 1. Ohm's law experiment, 2. Series connection (resistor, capacitor), 3. Parallel connection (resistor, capacitor), 4. Current characteristics experiment of light bulbs and diodes, 5. Shunt and multiplier experiment, 6. Battery internal resistance measurement experiment, 7. Capacitor experiment, 8. Wheatstone bridge circuit experiment. Unit, size W200×D70×H80mm, 2 units element Resistance elements: 5 (10Ω, 20Ω x 2, 50Ω, 100Ω) 3 capacitors (100μF, 470μF, 1000μF) Light bulb socket (base E10 size) Battery box (for AA batteries) Knife switch, variable resistor (0 to 500 Ω) Connection terminal A (for connection between main bodies) 3 pieces Connection terminal B x 2 Product code: 134-880
