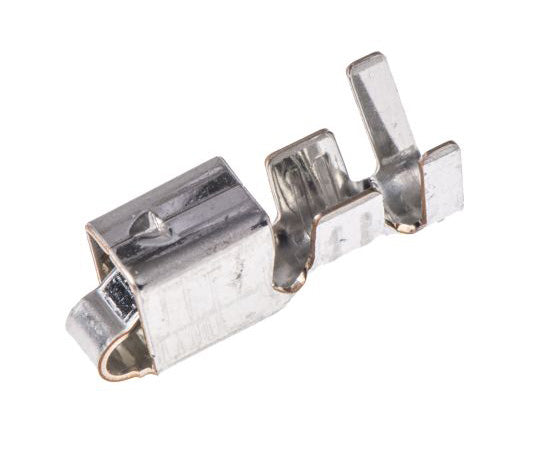

Crimp terminal contact, female, NV VH series, 1 bag (50 pieces) BVH-41T-P1.1 1 bag (50 pieces)

For VH series crimp housings see typical part number: 762-0737 762-0737. The JST part number BVH-41T-P1.1 for the contacts with play is not listed in the datasheet, only the reeled version SVH-41T-P1.1 is listed. JST VH Series Crimp Contacts JST's VH series wire-to-board, 3.96 mm pitch, through-hole connectors are suitable for signal, power, and output circuit applications. The VH series wire-to-board, 3.96mm pitch, through-hole connectors are small but have a large capacity and ensure good contact retention between the contacts and the mount. Part number; 762-0698 762-0698: Loose crimp contacts for wire sizes 20-16 AWG (0.5 → 1.25mm2) Part number; 762-0692 762-0692: Reel crimp contacts for wire sizes 20-16 AWG (0.5 → 1.25mm2) Part number; 762-0702 762-0702: Reel crimp contacts for wire sizes 20-18 AWG (0.33 → 0.83mm2) Quantity: 1 bag (50 pieces) Male/Female: Female Compatible products: NV/VH connector housing Series: NV, VH Minimum wire size mm2: 0.5mm2 Termination method: Crimp Contact plating: Tin Maximum wire size AWG: 16AWG Maximum contact resistance: 10mΩ Operating temperature Min: -25°C Operating temperature mAx: +85°C RoHS Compliance Status: Compliant Code number: 762-0698
