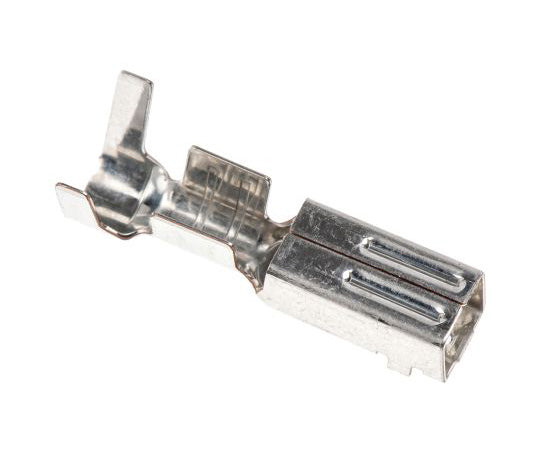

Crimp terminal contact, female, VL series, 1 bag (100 pieces) BVF-61T-P2.0 1 bag (100 pieces)

JST VL Series Crimp Contacts and Cable Assemblies Crimp contacts and cable assemblies for use with VL series wire-to-wire crimp connector housings. The crimp pin and receptacle contacts are constructed from phosphor bronze with tin plating and accept wire sizes from 20 to 14 AWG. Part numbers ; 820-1119 820-1119 , ; 820-1113 820-1113 , ; 820-1122 820-1122 , and ; 820-1125 820-1125 are VL series crimp cable assemblies with either a crimp receptacle or crimp pin contact on one side. ; 820-1119 820-1119 VL double ended cable assembly, wire style UL1015, with female contacts, 150mm length ; 820-1113 820-1113 VL double ended cable assembly, wire style UL1015, with female contacts, 300mm length ; 820-1122 820-1122 VL double ended cable assembly, wire style UL1015, with male contacts, 150mm length ; 820-1125 820-1125 VL double ended cable assembly, wire style UL1015, with male contacts, 300mm length Quantity: 1 bag (100 pieces) Male/Female: Female Compatible products: VL connector housing Series: VL Minimum wire size mm2: 0.5mm2 Termination method: Crimp Contact plating: Tin Maximum wire size AWG: 14AWG Maximum contact resistance: 10mΩ Operating temperature Min: -25°C Operating temperature mAx: +90°C RoHS Compliance Status: Compliant Code number: 512-9235
