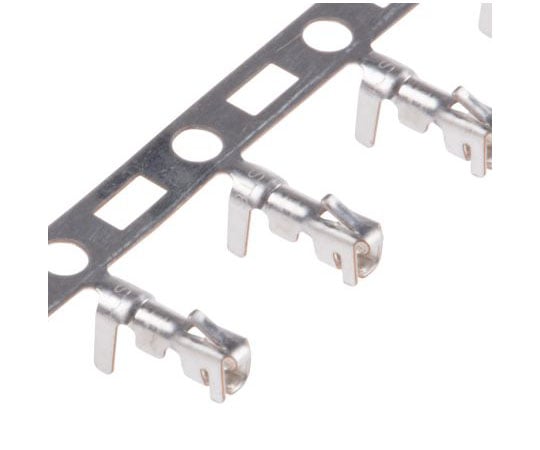

Crimp terminal contact, female, XH series, 1 set (250 pieces) SXH-001T-P0.6 1 set (250 pieces)

JST XH Series Crimp Contacts and Cable Assemblies Crimp receptacle contacts and cable assemblies for use with the XH series crimp connector housings. The crimp receptacle contacts are made from phosphor bronze with tin plating and accept a wire size range of 28-22 AWG. Part numbers 820-1548 820-1548 and 820-1541 820-1541 are XH series crimp cable assemblies terminated with a crimp receptacle contact on one end. ; 820-1548 820-1548 is 150mm long, ; 820-1541 820-1541 is 300mm long. Quantity: 1 tape (250 pieces) Male/Female: Female Compatible products: XH connector housing Series: XH Minimum wire size mm2: 0.08mm2 Termination method: Crimp Contact plating: Tin Contact material: Copper phosphate Maximum contact resistance: 20Ω Operating temperature Min: -25°C Operating temperature mAx: 85°C RoHS Compliance Status: Compliant Code number: 123-5947
