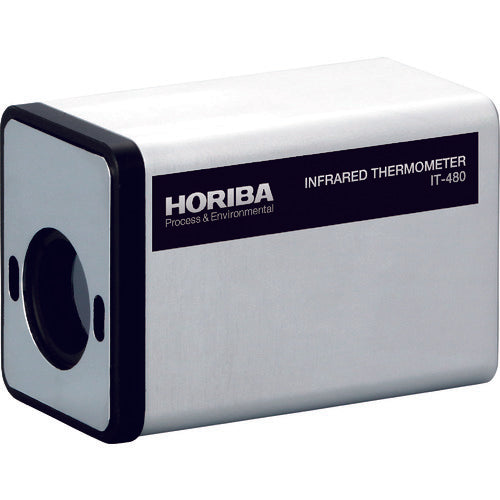

Horiba radiation thermometer, small spot type IT-480S, 1 unit

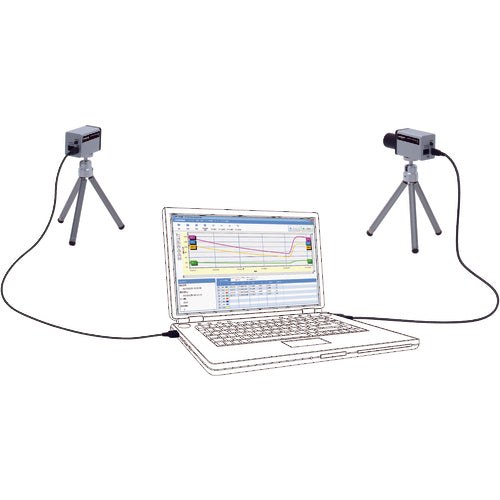

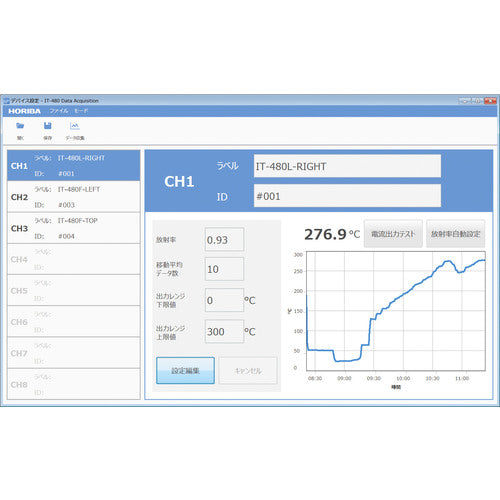

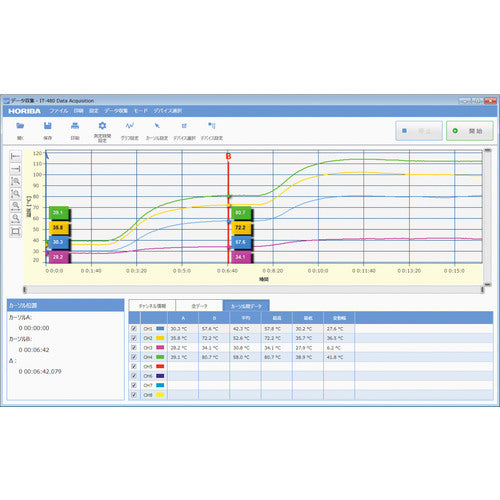

Catalog number: IT-480S Features: ●This is the industry's highest level of high-precision installed radiation thermometer, made possible by HORIBA infrared. ●With a USB port, simply connect it to a computer to supply power and collect continuous measurement data. ●It can be fixed not only with the included mounting bracket, but also with a camera tripod, making it easy to use for temperature measurement experiments. Applications: ●For continuous measurement experiments in physicochemical and biochemical research that require high precision and reliable measurement values. ●For heat generation tests of small objects such as electrical and electronic parts. ●For heat generation tests caused by friction on bearings, etc. ●For continuous measurement of small parts, such as measuring the temperature of fingertips in research on poor circulation. ●For continuous monitoring of abnormal heat generation in electrical equipment, etc. Specifications: ● Measurement temperature range (℃): -50 to 500 ● Measurement field of view (mm): φ3/30 ● Power supply (V): DC12-24V/USB bus power ● Power supply: DC12-24V/USB bus power ● Emissivity: Factory setting 0.95 (can be changed in the range of 0.100 to 1.999 using the PC application software "IT-480 Data Acquisition") ● Output: USB output, current output (4-20mA) ● Measurement accuracy: Within ±1.0℃ (USB output, range of 0-200℃) ● Repeatability: Within 0.5℃ (0-500℃) ● Response time: Within 0.14 seconds (95% response of current output, when the number of moving average data is 1) ● Width x Depth x Height (mm): 32 x 58 x 40
