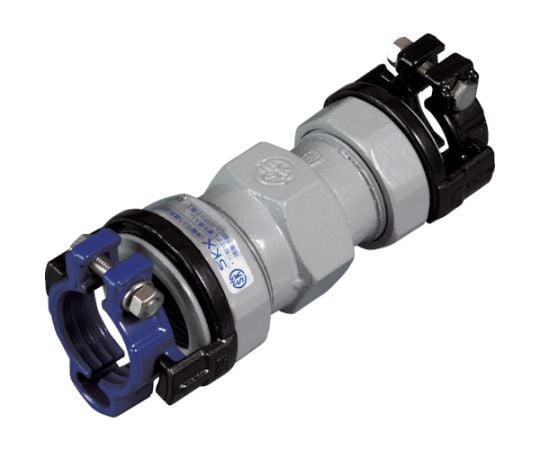

PVC pipe x steel pipe dissimilar pipe joint SKX socket SKX-S-V16X16 1 piece

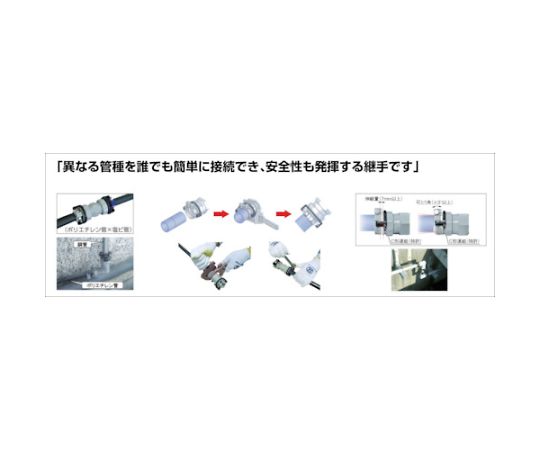

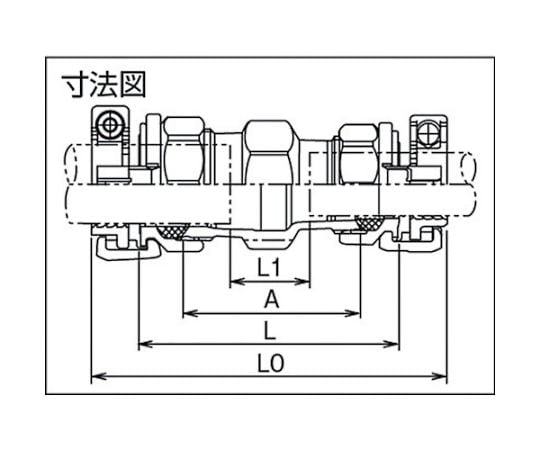

No disassembly required, simply insert the tube and tighten to connect. Different types of pipes can be connected with simple construction. Comes with anti-detachment fittings to prevent the tube from coming loose. It has elasticity and can absorb external forces. Water supply piping, drainage piping, seawater piping, air piping, etc. Nominal diameter (mm): 16 x 15 - L (mm): 83 - L1(mm):19 - A(mm):60 - L0(mm):119 L1 (mm) Maximum: 19 L1 (mm) Min: 10 Maximum operating pressure (MPa): 1 Operating temperature range (℃): 0 to 45 Nominal diameter: V16×16 Operating temperature: 0 to 45°C Operating pressure: 1MPa Material/Finish: Vermicular cast iron Country of Origin: Japan Code number: 380-0636
