Yamato Valve Gate Valve 10A (JIS 10K Compliant, Bronze) B10G 10A 1 pc

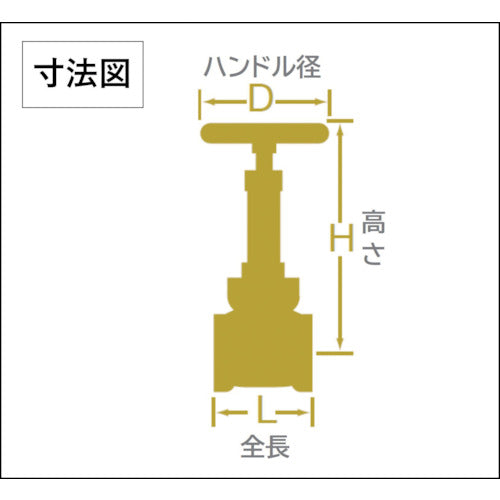

Catalog number: B10G 10A Features: ●JIS compliant. Applications: ●Main applications: For water supply, air conditioning and sanitary piping, equipment cooling, circulation ●Cannot be used with flammable or toxic gases ●Please consult us if you wish to use with steam. Specifications: ●Nominal diameter A: 10 ●Nominal diameter B: 3/8 ●Total length (mm): 46 ●Height (mm): 133.5 ●Handle diameter D (mm): 55 ●Maximum allowable pressure (MPa): 1.4 (-29℃ to 120℃ still water, oil, air), 1.0 (171℃ or less still water, oil, air) Material/Finish: ●Bronze (CAC406)
