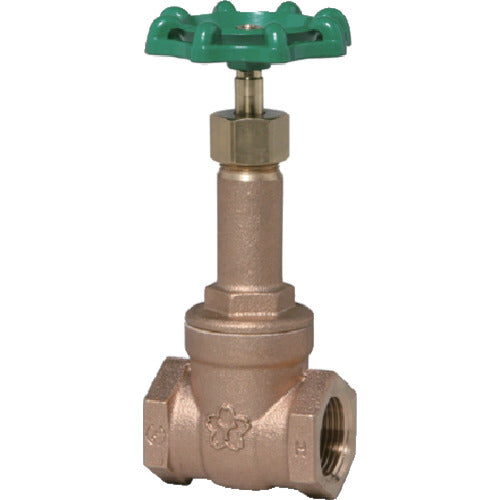

Yamato Valve Gate Valve 20A (JIS 10K, Bronze) B10G 20A 1 piece

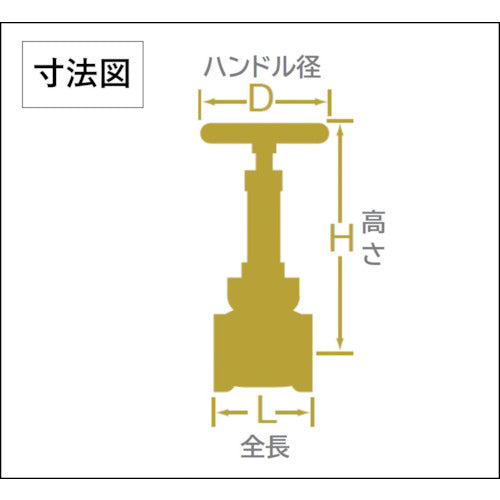

Catalog number: B10G 20A Features: ●Complies with JIS B 2011. Applications: ●Main applications: Water supply, air conditioning and sanitary piping, equipment cooling, circulation Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 65 ●Height (mm): 159 ●Handle diameter D (mm): 70 ●Maximum allowable pressure (MPa): 1.4 (-29℃ to 120℃ still water, oil, air), 1.0 (171℃ or less still water, oil, air) Material/Finish: ●Bronze (CAC406)
