Yamato Valve Gate Valve 40A (JIS 10K, Bronze) B10G 40A 1 piece

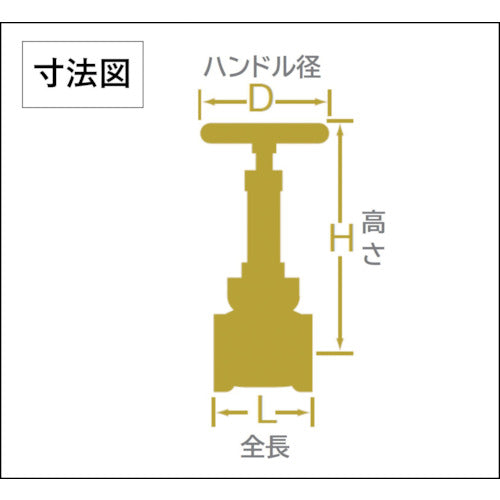

Catalog number: B10G 40A Features: ●Complies with JIS B 2011. Applications: ●Main applications: Water supply, air conditioning and sanitary piping, equipment cooling, circulation Specifications: ●Nominal diameter A: 40 ●Nominal diameter B: 1 1/2 ●Total length (mm): 90 ●Height (mm): 251 ●Handle diameter D (mm): 100 ●Maximum allowable pressure (MPa): 1.4 (-29℃ to 120℃ still water, oil, air), 1.0 (171℃ or less still water, oil, air) Material/Finish: ●Bronze (CAC406)
