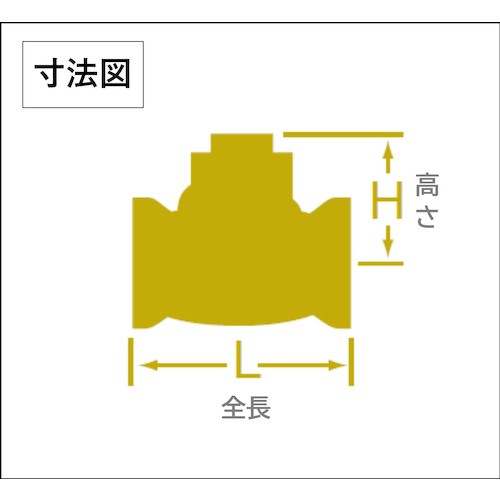

Catalogue number: BC 20A Features: ●Prevents backflow of fluid. Applications: ●Main applications: A valve that allows fluid to flow in one direction and prevents backflow. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 65 ●Height (mm): 42 ●Maximum allowable pressure (MPa): 0.88MPa (oil, air, pulsating water below 120°C), 0.5MPa (saturated steam), 1.2MPa (clear water below 120°C) ●Compatible fluids: water, oil, air. *Cannot be used with steam, flammable or toxic gases. Material/Finish: ●Body material: CAC406
