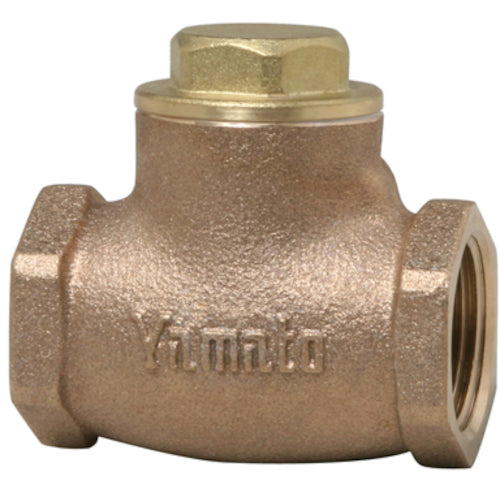

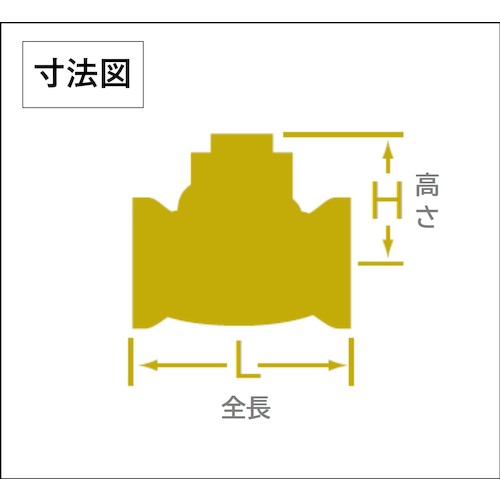

Catalogue number: BC 50A Features: ●Prevents backflow of fluid. Applications: ●Main applications: A valve that allows fluid to flow in one direction and prevents backflow. Specifications: ●Nominal diameter A: 50 ●Nominal diameter B: 2 ●Total length (mm): 120 ●Height (mm): 76 ●Maximum allowable pressure (MPa): 0.88MPa (oil, air, pulsating water below 120°C), 0.5MPa (saturated steam), 1.2MPa (clear water below 120°C) ●Compatible fluids: water, oil, air. *Cannot be used with steam, flammable or toxic gases. Material/Finish: ●Body material: CAC406
