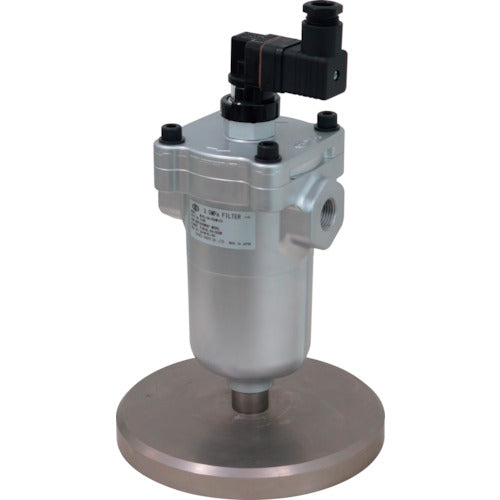

DAISEI Line Filter KL-04 KL-04-10U-IV 1 piece

Catalogue number: KL-04-10U-IV Features: ●Installed in-line, it maintains the cleanliness of the oil in the hydraulic circuit and prevents foreign matter from entering hydraulic equipment. ●The element can be easily replaced with a top pull-out type. ●The piping method is a screw-in type (flange type is optional). ●The flow direction can be easily changed by turning the top cover 180°. Applications: ●For general hydraulic oil. Specifications: ●Aperture: Rc1/2 ●Total length (mm): 221 ●Total width (mm): 115 ●Standard flow rate (L/min): 44 ●Maximum operating pressure: 3.5MPa ●Filtration accuracy: 10 microns ●With visual indicator and relief valve
