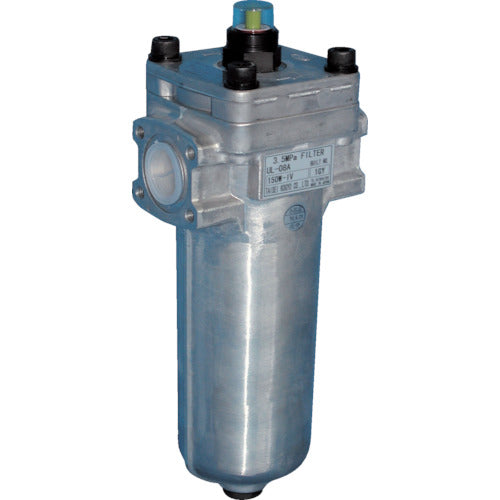

Daisei Line Filter UL-12 UL-12A-10U-IV 1 piece

Catalogue number: UL-12A-10U-IV Features: ●Installed in-line, it maintains the cleanliness of the oil in the hydraulic circuit and prevents foreign matter from entering hydraulic equipment. ●Top-out type for easy element replacement. ●Threaded piping system (flange type is optional). ●Flow direction can be easily changed by turning the top cover 180°. Applications: ●For general hydraulic oil. Specifications: ●Aperture: Rc1 1/2 ●Total length (mm): 387 ●Total width (mm): 150 ●Standard flow rate (L/min): 180 ●Maximum operating pressure: 3.5MPa ●Filtration accuracy: 10 microns ●With visual indicator and relief valve
