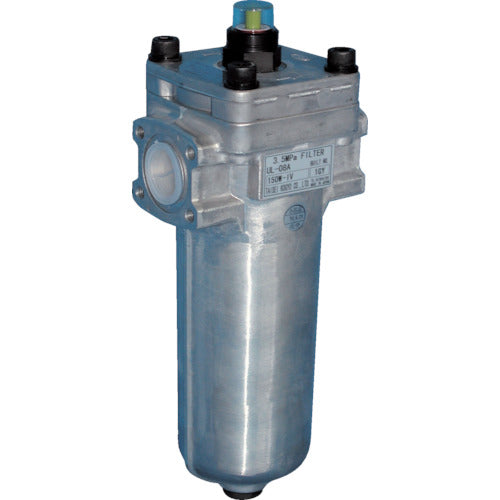

Daisei Line Filter UL-20 UL-20B-10U-IV 1 pc

Catalogue number: UL-20B-10U-IV Features: ●Installed in-line, it maintains the cleanliness of the oil in the hydraulic circuit and prevents foreign matter from entering hydraulic equipment. ●Top-out type for easy element replacement. ●Threaded piping system (flange type is optional). ●Flow direction can be easily changed by turning the top cover 180°. Applications: ●For general hydraulic oil. Specifications: ●Aperture: Rc2 1/2 ●Total length (mm): 564 ●Total width (mm): 215 ●Standard flow rate (L/min): 600 ●Maximum operating pressure: 3.5MPa ●Filtration accuracy: 10 microns ●With visual indicator and relief valve
