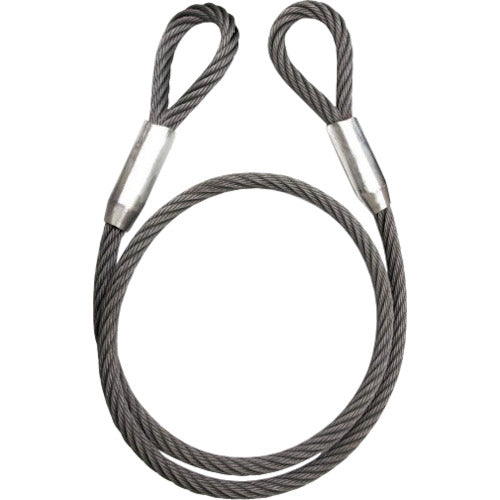

Main rope low-resilience sling Gokunan 12mm 2m GN-1220 1 piece
Main rope low-resilience sling Gokunan 12mm 2m GN-1220 1 piece
Regular price
¥16,645
Regular price
Sale price
¥16,645
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

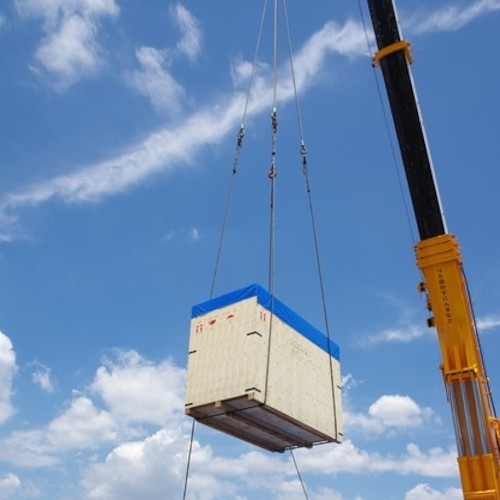

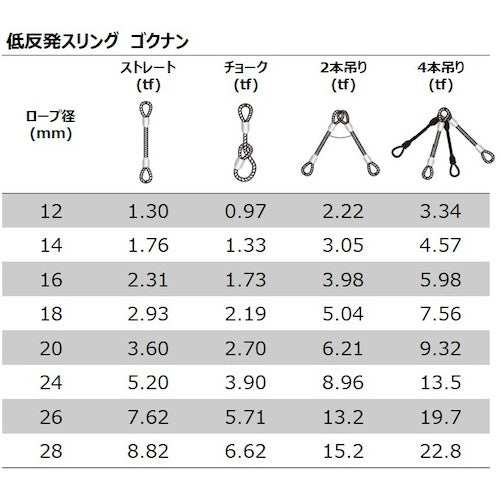

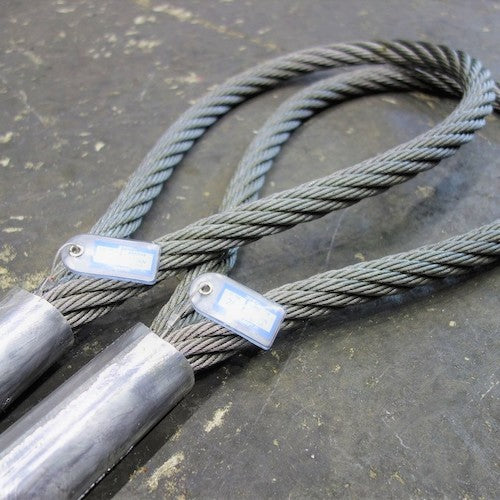

Catalog number: GN-1220 Features: ●70% less repulsive force than general wire ropes, and the ultra-low repulsive force makes it easy to handle and well suited to lifting loads. ●Reduced strain on the body, significantly improved work efficiency, and good fatigue and abrasion resistance. ●Tapered clamp tube is used, so there is no hair on the processing part, allowing for safe work. ●Comes with a safety tag indicating the rope diameter and load capacity to prevent near misses. Applications: ●For slinging work at high altitudes, lifting heavy objects and molds, and piling work. Specifications: ●Safe working load for 2-strand vertical suspension (t): 2.6 ●Total length (m): 2 ●Sling diameter (mm): 12 ●Type: Compression stop on both ends ●Eye width (mm): 120 ●Maximum working load (t): 1.3 ●Eye length (mm): 240 ●2-strand vertical: 2.6t ●2-strand 60° suspension: 2.22t ●NETIS registered product KTK-170004-VE Material/Finish: ●Wire: Carbon steel ●Core: Steel core ●Sleeve: Aluminum alloy Note: ●For rope diameters of 20 mm to 70 mm, please contact us separately.
