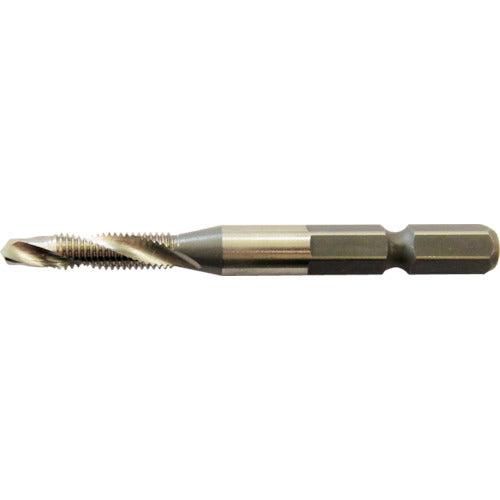

Onishi Hexagonal Shank Tapping Drill M5 x 0.8 x 68 NO50-M5X0.8X68 1 pc

Catalog number: NO50-M5X0.8X68 Features: ● Hexagonal shaft compatible with impact drills, allowing pilot holes and thread cutting at the same time. ● The thickness of the material being processed is up to 5.0 mm. Applications: ● Forming and correcting threads in through holes. ● Work material: Iron, aluminum, brass. Specifications: ● Nominal size: M5 ● Pitch (mm): 0.8 ● Drill length (mm): 6 ● Tap size: M5 x 0.8 ● Tap length (mm): 15 ● Total length (mm): 68 ● Shank diameter (mm): 6.35 (hexagonal shaft) ● Machining thread: Metric thread ● Compatible models: Impact drivers with forward and reverse rotation of 12V or more ● Pilot hole drill diameter (mm): 4.2 Material / Finish: ● High speed steel (HSS) Caution: ● Cannot be used with power tools other than those with forward and reverse rotation. ● Be sure to use tapping oil (lubricant) when tapping.
