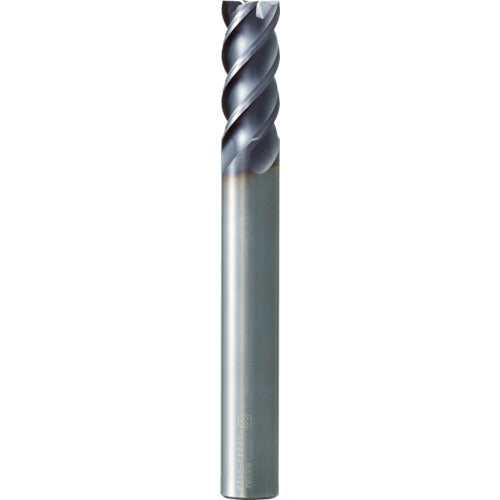

Omi Carbide 4-blade Square End Mill (Short) Number of blades: 4 Blade diameter: 12 mm OES4S-0120 1 piece

Catalog number: OES4S-0120 Features: ●A cost-effective 4-blade end mill that can be used with a wide variety of workpiece materials. ●Excellent chip removal and a highly twisted blade shape with high cutting edge rigidity that can be used with general steel and stainless steel. ●The unique chip pocket shape allows groove cutting with a cutting depth equivalent to that of a 2-blade. Applications: ●Workpiece materials: carbon steel, alloy steel, tempered steel, cast iron. Specifications: ●Blade diameter (mm): 12 ●Blade length (mm): 26 ●Neck length (mm): 26 ●Shank diameter (mm): 12 ●Number of blades (pieces): 4 ●Total length (mm): 100 ●Surface treatment: OC coating ●Twist angle (°): 45 ●Number of blades: 4 ●Twist angle 45° Material/Finish: ●Carbide
