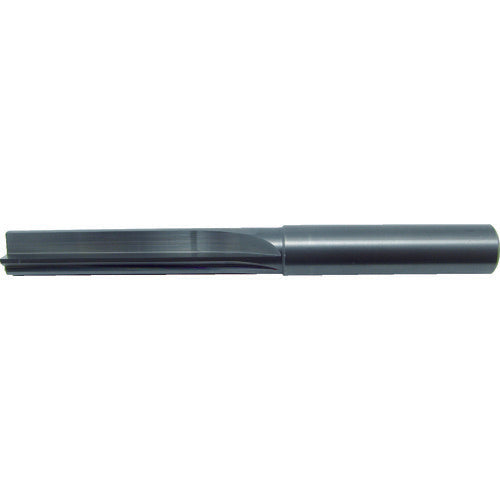

Omi Carbide V Reamer (Short) Blade diameter 3.0 mm Blade length 20 mm OVRS-0030 1 piece

Catalog number: OVRS-0030 Features: ● Carbide V reamer (short) 3.0 mm ● Unique jump blade mechanism achieves machining hole precision H7 and surface roughness 3S. ● Self-guiding function ensures straightness. Applications: ● Workpiece: Aluminum (AL, ADC), copper alloy, cast iron (FC), ductile cast iron (FCD). ● Workpiece: Aluminum (AL, ADC), copper alloy, cast iron (FC), ductile cast iron (FCD). Specifications: ● Blade diameter (mm): 3 ● Number of blades (pieces): 4 ● Blade length (mm): 20 ● Total length (mm): 60 ● Shank diameter (mm): 3 ● Dimensional tolerance: +0.006 to +0.003 ● Number of blades: 4 Material/Finish: ● Carbide (equivalent to K10)
